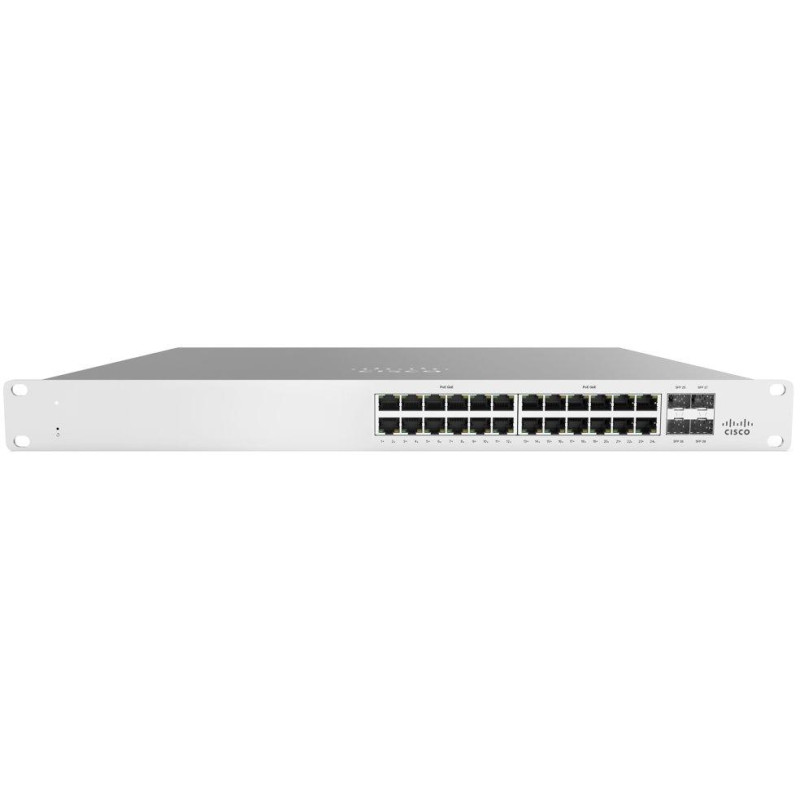

Cisco Meraki MS120-24P-HW
Managed 24-port PoE+ (802.3af/at) switch with four SFP ports and advanced networking features. It will find its place primarily in a small or medium-sized business. The switch's switching capacity is 56 Gbps and the routing speed is 41.67 Mpps . Built-in quality of service (QoS) helps maintain consistent network performance and allows for seamless application operation. Cisco Discovery Protocol technology simplifies installation by discovering all connected Cisco devices and allowing them to share information.
Meraki network switches are designed to work seamlessly with cloud-managed Wi-Fi access points, IoT devices, and security solutions, and are easy to configure, deploy, secure, and monitor at scale.
- Easy management with Cisco Meraki Dashboard
- Automatic firmware updates
- SNMP/Syslog integration
- DHCP snooping
Ethernet switching options:
- 802.1p QoS, 8 queues
- 802.1Q VLAN and channel support for up to 4094 VLANs
- Protocol 802.1w, 802.1D Rapid Spanning Tree (RSTP, STP)
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- 802.3ad protocol
- Port mirroring
- IGMP snooping
BASIC SPECIFICATIONS
Number of ports: 24× 1GbE RJ-45, 4× SFP, 1× RJ-45 (management)
PoE: yes, 802.3af/at, 370 W budget
Switch capacity: 56 Gbps
Routing speed: 41.67 Mpps
Dimensions: 440 × 250 × 44 mm
