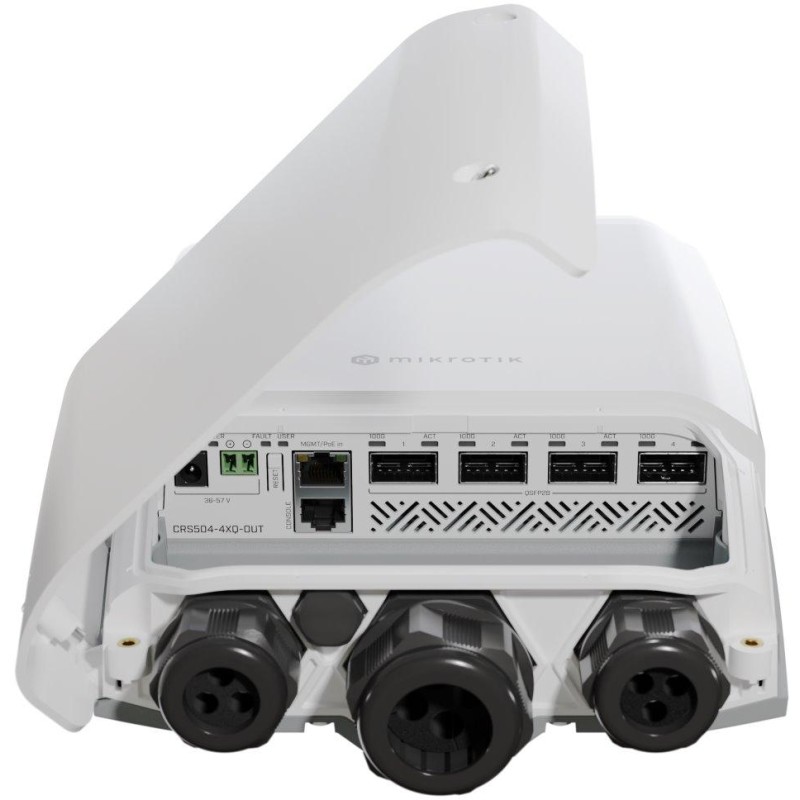

Mikrotik Cloud Switch CRS504-4XQ-OUT, 650 MHz CPU, 128 MB RAM, 1x LAN, 4x QSFP28, 2x PSU, L5, outdoor

MikroTik Cloud Router Switch CRS504-4XQ-OUT Outdoor Cloud Router Switch with four 100G QSFP28 and one RJ-45 Ethernet port + 1x RJ-45 console. The switch provides a 100Gigabit optical connection, making it an ideal solution for both Internet providers and companies or data centers. The switch is equipped with a Qualcomm QCA9531 650 MHz processor, 128 MB of RAM and a top-of-the-line Marvell Prestera switching chip (98DX4310), which can handle even the highest load. The Ethernet port also supports PoE-in input (43-57 V). The switch includes MikroTik RouterOS v7 and a full L5 license. Outdoor version - weatherproof housing with IP66 protection 16x 25G line directly to the switching chip Designed primarily for connection providers, companies, data centers, etc. 3 ways of DC power supply (PoE input, DC jack, 2pin terminal block) 4x 100G QSFP28, 1x RJ-45 (100 Mbps), 1x console port (RJ-45) 100G ports can be divided using splitter cables in various combinations (e.g. 16x 25G) Qualcomm QCA9531 650 MHz, Marvell Prestera (98DX4310), 128 MB RAM, 32 MB Flash Wall or pole mounting Information about the MikroTik RouterOS system If you are starting out with MikroTik RouterOS or need advice on more complex settings, you can use our support. You can learn how to set up and manage your RouterBoard at our training courses. Setup tips and frequently asked questions can be found in the Technical Support section. All RouterBoards have the same MikroTik RouterOS system. All devices with RouterOS MikroTik fully support IPv6, have a firewall, Queues, NAT and with an L4 license support CAPsMAN server. MikroTik can be configured via a web interface, via a mobile application, or with the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option for quick setup. There are several preset profiles to choose from. BASIC SPECIFICATIONS Processor: Qualcomm QCA9531, 650 MHz, 1-core Switch chip and memory: Marvell Prestera (98DX4310), 128 MB RAM, 32 MB Flash Ports: 4x 100G QSFP28, 1x RJ-45 (100 Mbps), 1x console port (RJ-45) Operating system: MikroTik RouterOS v7 (license level L5) PoE support: yes, 1x PoE input (43-57 V), active 802.3bt Power supply: PoE input, DC jack (36-57 V), 2pin terminal block (36-57 V) Dimensions: 330 x 200 x 70 mm Useful links and videos: Declaration of conformity + user manual Device setup via Quick Set quick guide Mobile phone control application Device reset, reset button function MikroTik RouterOS system recovery via Netinstall utility Setting up address translation (NAT) Setting up Load Balancing (distribution of traffic between multiple Internet connections) Setting up Failover (switching the link to the backup in case of an outage) Multiple uplinks using PCC & Load balancing Static NAT & RouterOS MikroTips: Netinstall
