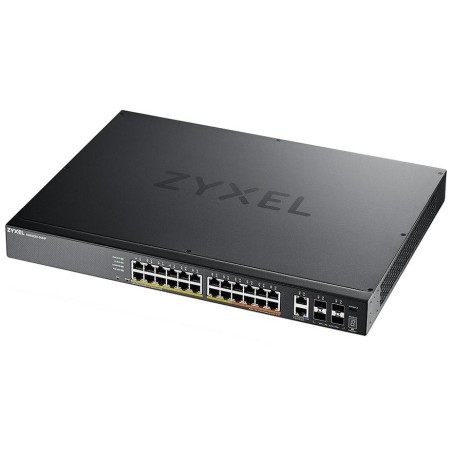

ZyXEL XGS2220-30HP
Multi-gigabit stackable switch offering 24x GbE RJ-45 port, 2x 10G RJ-45 and 4x 10G SFP+ slot . These 10Gigabit ports offer flexibility for connecting to servers, network storage or other high-speed network devices. In addition, the SFP+ slots can be used to connect to aggregation switches for backbone services. This model is equipped with 10 IEEE 802.3bt PoE++ ports and 16 IEEE 802.3af/at PoE/PoE+ ports. The switch offers a total PoE power budget of 400 W and is suitable for flexible expansion of network installations, especially with devices with high power requirements such as Wi-Fi access points. Thanks to the integration of router functions, the switch performs L2 switching as well as L3 routing . The switching capacity reaches up to 168 Gbps and the routing speed reaches up to 125 Mpps . The buffer has a capacity of 2 MB, a table for 32K MAC addresses, an L3 routing table for up to 1K IPv4 entries and 512 IPv6 entries + a routing table for 64 entries.
The switch supports hybrid mode , allowing it to operate in either standalone mode or Nebula cloud-managed mode. When in standalone mode, the switch can be configured and managed using the web configurator. When in Nebula cloud-managed mode, it can be managed using the Nebula Control Center (NCC).
- Multi-Gigabit ports with SFP+ slots for flexible connection of servers, network storage and other high-speed network devices.
- The XGS2220-30HP switch supports IEEE 802.3at/bt (PoE+/PoE++) standards, which allows it to deliver up to 60W (or 30W) of power per port.
- Dedicated network AV mode with an intuitive AI-powered wizard to set up a professional AVoIP system.
- For high bandwidth and more flexible management, it allows you to create a physical stack via four 10-gigabit SFP+ slots.
- The XGS2220 series can be managed using the Nebula cloud platform, in standalone mode, and via SNMP.
- A wide range of layer 2 features for VoIP, video conferencing and Internet TV operations (L2 multicast, IGMP Snooping and Multicast VLAN Registration - MVR).
- The XGS2220 series models are equipped with a smart fan that automatically adjusts its speed to the device temperature.
Includes NebulaFlex Pro package (1 year license), power cable, and rack mount kit.
BASIC SPECIFICATIONS
Ports: 24x GbE RJ-45, 2x 10G RJ-45, 4x 10G SFP+ slot, 1x USB Type C console port
PoE: yes, 802.3af/at/bt PoE++, total budget 400 W
Switch capacity: 168 Gb/s
Routing speed: 125 Mbps
Dimensions: 441 x 330 x 44 mm
Weight: 4.35 kg
