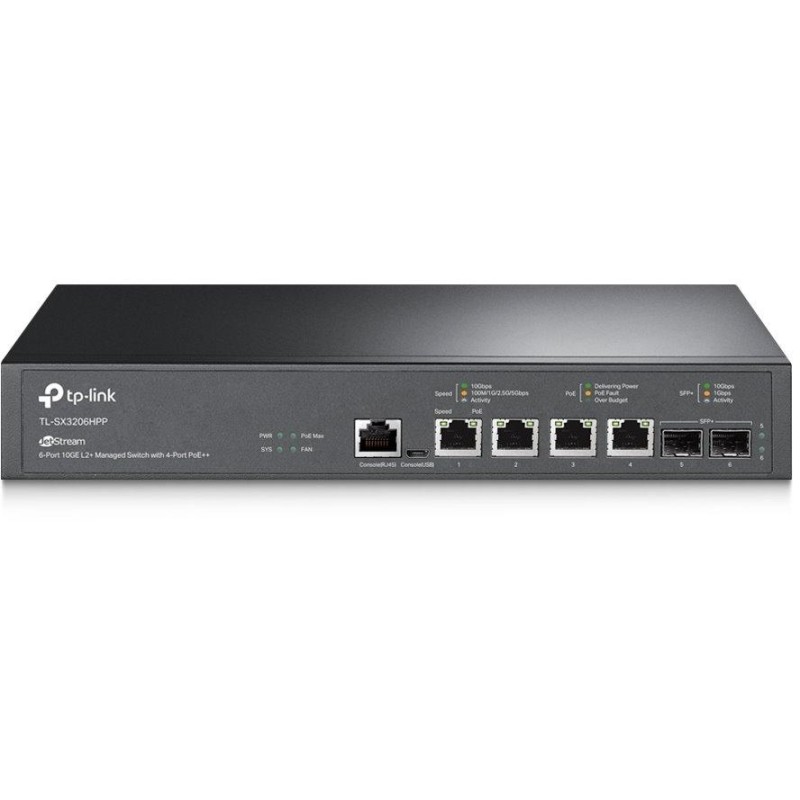

TP-Link TL-SX3206HPP - Omada 6-port 10GE L2+ managed switch, 4 PoE++ ports

TP-Link TL-SX3206HPP

High-speed 6-port L2+ managed switch with 10G RJ-45 ports and SFP+ slots . The switch capacity is 120 Gbps and the routing speed is up to 89.28 Mpps .

•

• Lightning-fast connectivity at full 10G speeds: Offers high-bandwidth connectivity with four 10Gbit/s RJ-45 ports and two 10Gbit/s SFP+ slots.

• PoE++ power supply with up to 200W output power: Four 10G RJ45 ports supporting 802.3af/at/bt PoE++ power supply up to 60W per port are ideal for deploying Omada Wi-Fi 6 and Wi-Fi 6E access points.

• Multi-Gigabit Networks: 10G RJ-45 ports support 5 connection speeds (100M/1G/2.5G/5G/10G) and SFP+ slots can accommodate both 10G and 1G transceivers.

• Advanced L2 and L2+ features: Supports a full set of L2 and L2+ features such as static routing, enterprise-level QoS, and IGMP Snooping.

• Robust security strategy: Helps protect your local network investment with integrated IP-MAC-Port binding, ACL, port security, 802.1X authentication, and more.

• Static routing: Helps route internal traffic for more efficient use of network resources.

• Centralized cloud management: Integration with Omada SDN platform for cloud access and remote management.

• Stand-alone management: Web, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management options.


BASIC SPECIFICATIONS

Ports: 4x 10G RJ-45, 2x 10G SFP+, 1x RJ-45 (console), 1x microUSB (console)

Switch capacity: 120 Gbps

Routing speed: 89.28 Mpps

PoE: yes, 802.3bt/at/af, total power output 200 W

Max. power consumption: 244.90 W (27.29 W without PoE)

Dimensions: 294 x 180 x 44 mm
