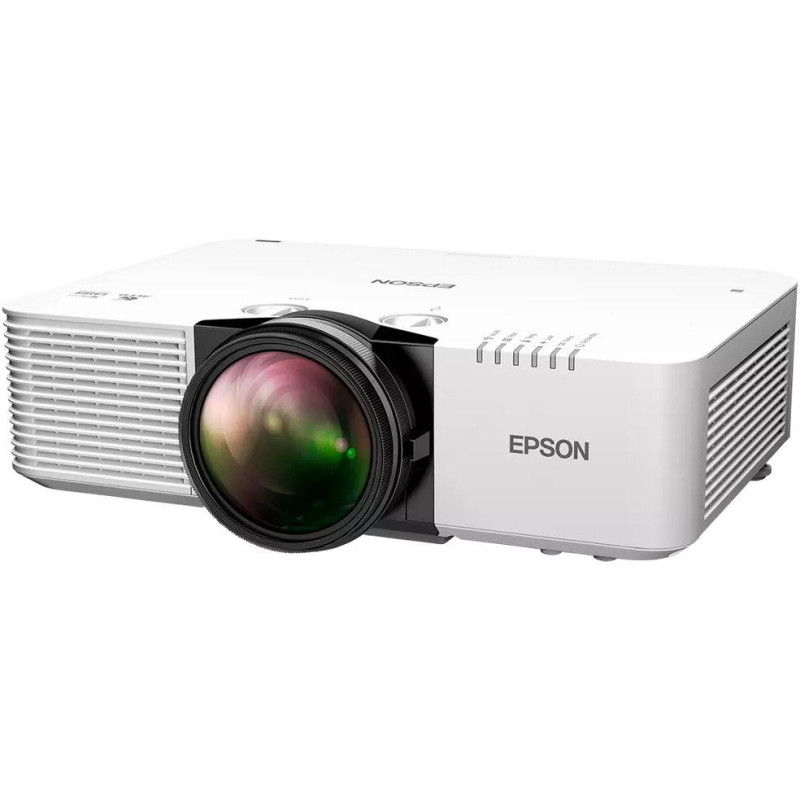

EPSON EB-L690SE 4K Laser Projector/ 6000 ANSI/ 5,000,000:1/ HDMI

Professional short-throw laser projector designed for large presentations in compact spaces.

The EB-L690SE projector combines 6000 lumens of brightness with advanced 4K Enhancement at 60Hz technology to deliver sharp, clear images with up to 4.6 million pixels . With a short throw ratio of 0.5-0.7:1, it allows you to project a scalable image up to 500" even in limited spaces without shadows or glare.

Exceptionally quiet operation with a noise level of just 36dB in normal mode or 26dB in eco mode ensures a quiet presentation environment. Maintenance-free laser technology provides up to 30,000 hours of operation in eco mode, minimizing maintenance costs and downtime.

Advanced installation options
The projector offers a fixed center lens with manual image shift and advanced features such as geometric corner correction. It supports 360° projection and features such as Edge Blending for complex installations. The optional ELPEC01 camera and Epson Projector Professional Tool enable quick setup and calibration.

Flexible control and connectivity
The system supports control via HDBaseT, LAN, RS-232C and other protocols. NFC and Epson Projector Config Tool make large-scale deployment easy. Crestron XiO cloud compatibility offers centralized control.

Ecological solution
Made from 19% recycled plastic with low energy consumption. Packaged in 100% recyclable cardboard with minimal packaging for sustainable operation.

BASIC SPECIFICATIONS

Projection system: 3LCD, RGB with liquid crystal shutter

LCD panel: 0.67 inches with C2 Fine

Brightness: 6000 lumens (4200 lumens economy)

Resolution: WUXGA (1920 × 1200 px)

Resolution enhancement: 4K Enhancement technology

Contrast ratio: more than 5,000,000:1

Light source: laser, 20,000/30,000 hours lifespan

Projection ratio: 0.50–0.70:1

Zoom: manual 1–1.4×

Screen size: 100-500 inches

Dimensions: 440 × 368 × 151 mm

Weight: 9.3 kg
