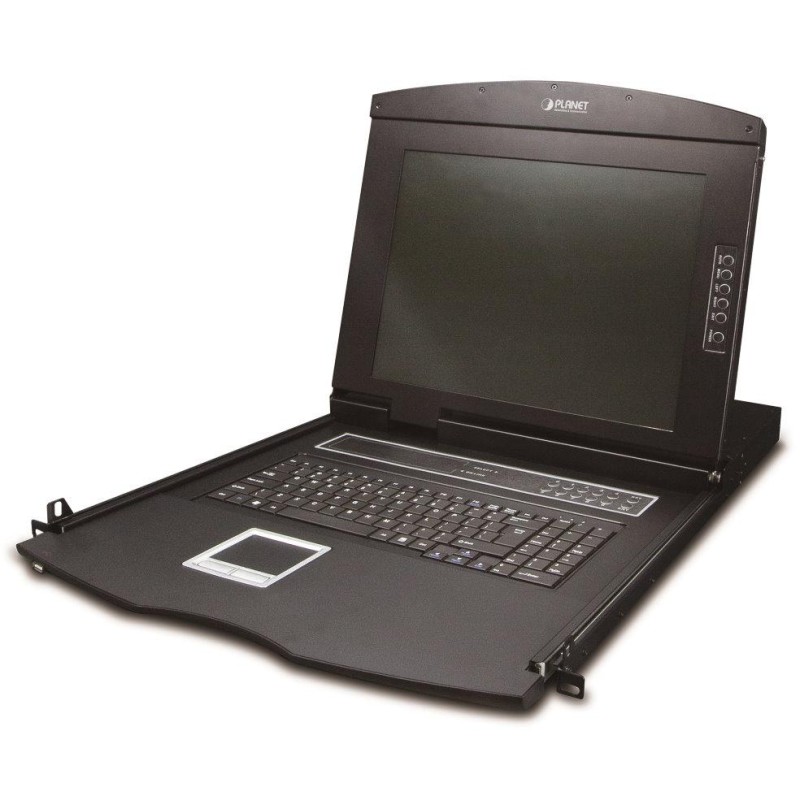

XtendLan IKVM-210-16M
IKVM console with 17" TFT display, 1280 x 1024 pixels, On Screen Display, hot keys. Installable in a 19" rack in 1U position.
Built-in KVM switch for controlling 16 computers via PS/2 and USB interfaces. Remote access via IP/HTTP with H.264 image compression.
LAN 1x 1000Base-T. Remote control by utility for Windows OS, image transmission with H.264 compression. PC management can only be on the Windows platform. Controlled computers are now OS independent (Win, Linux, Mac…). Possible cascading with other KVMs. 1 connection cable 1.8m long in the package.
KVM (keyboard-video-mouse) in a 1U drawer design on sliding rails for installation in 19" cabinets. The design optimizes the spatial solution of the control console in distribution cabinets. It controls several servers and PC stations, switching directly from the keyboard.
Implemented remote control via the Internet or LAN network thanks to internal hardware encoding capabilities and switching of peripheral ports such as video output, keyboard and mouse.
The image is physically transmitted from connected computers or servers, the remote control solution is absolutely independent of the installed operating systems, access to the BIOS of the controlled machine is enabled. The user can manage up to 8 computers, and it is possible to switch between individual inputs electronically.
The device can be cascaded with other KVM (keyboard-video-mouse) switches, such as the Planet KVM-210 models, so the number of controlled computers can be directly expanded to 256 PC stations.
BASIC SPECIFICATIONS
Display: active 17" TFT LCD, physical pixel count 1280 x 1024, contrast ratio 1000:1, support for 16.7M colors,
Number of controlled computers: 16
Connection connectors: DIN 15, for the supplied combo cables
Connection cables: combine VGA, PS/2 keyboard, PS/2 mouse and USB. The package includes 1 x KVM-KC1-1.8 cable.
Ports: 16x DIN 15 for computer connection, 2x USB for user local peripheral connection
Other features:
- OSD displays functions directly on the LCD, switching computers on OSD
- possible cascade with other KVM-210 switches to control multiple PCs
- durable keyboard with touchpad (functions as a PS/2 mouse), 100 keys including standard numeric keypad (17 keys)
Mechanical properties and environment:
Power supply: DC 12V
Operating temperature: 0°C to 50°C
Installation: in 19" cabinets, recommended from a depth of 800 mm, the support rail allows fixed installation even at a depth of 1000 mm
Dimensions: 611 x 556 x 44.5 mm
Weight: 17.5 kg
Software control and access:
- management using the supplied utility (Windows)
- resolution up to 1920 x 1080, compression of transmitted image with H.264 codec
- secure communication with DES, 3DES, AES traffic encryption
- setting the remote computer's mouse parameters: speed, cursor display, merging/splitting the remote and local mouse
- software keyboard for situations where the local keyboard is different from the remote one, character mapping
Keyboard and controls detailcontrol panel:
Rear panel, here is a photo of the module for 8 PCs:
Cascading:
