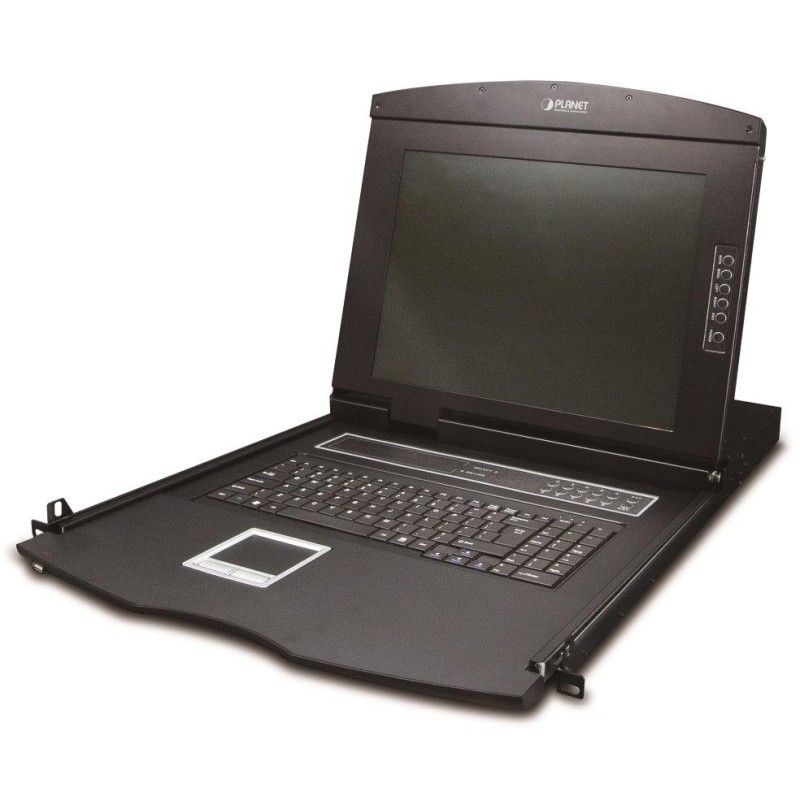

XtendLan KVM-210-16M
KVM console with 17" TFT display, 1280 x 1024 pixels, On Screen Display, hot keys. Installable in a 19" rack in a 1U position.
Built-in KVM switch for controlling 16 computers via PS/2 and USB interfaces. 1 connection cable 1.8 m long in the package.
KVM console (keyboard-video-mouse) in 1U drawer design on sliding rails for installation in 19" cabinets. The design optimizes the spatial solution of the control console in distribution cabinets. It controls several servers and PC stations, switching directly from the keyboard.
BASIC SPECIFICATIONS
Display: active 17" TFT LCD, physical pixel count 1280 x 1024, contrast ratio 1000:1, support for 16.7M colors,
Number of controlled computers: 16
Connection connectors: DIN 15, for the supplied combo cables
Connection cables: combine VGA, PS/2 keyboard, PS/2 mouse and USB. The package includes 1 x KVM-KC1-1.8 cable.
Ports: 16x DIN 15 for computer connection, 2x USB for user local peripheral connection
Other features:
- OSD displays functions directly on the LCD, switching computers on OSD
- possible cascade with other KVM-210 switches to control multiple PCs
- durable keyboard with touchpad (functions as a PS/2 mouse), 100 keys including standard numeric keypad (17 keys)
Mechanical properties and environment:
Power supply: DC 12V
Operating temperature: 0°C to 50°C
Installation: in 19" cabinets, recommended from a depth of 800 mm, the support rail allows fixed installation even at a depth of 1000 mm
Dimensions: 611 x 556 x 44.5 mm
Weight: 17.5 kg
Keyboard and control panel detail:
Rear panel:
Cascading:
