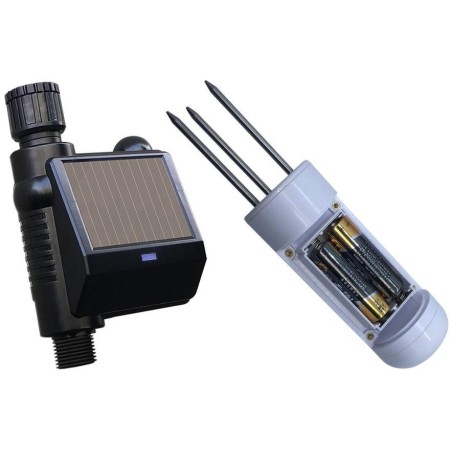

IMMAX NEO SMART irrigation valve with solar panel + soil moisture sensor, Zigbee, TUYA

IMMAX NEO SMART irrigation valve + soil moisture and temperature sensor

Solar panel valve for creating a smart irrigation system . Using a smartphone application, you can set irrigation cycles, flow rate range and monitor the valve opening status. Power is provided by two AA batteries (not included), which are recharged using the built-in solar panel . The device communicates using the ZigBee 3.0 protocol. The free IMMAX NEO PRO application is compatible with TUYA , Lidl systems and supports voice control using Google Assistant, Amazon Alexa and Apple Siri. The package also includes a wireless sensor that monitors soil temperature and moisture in real time.

Note: The device requires connection to the IMMAX NEO BRIDGE PRO Smart Zigbee 3.0 v2 smart gateway (sold separately) or another TUYA hub based on the ZigBee 3.0 standard.

BASIC SPECIFICATIONS

Interface: ZigBee 3.0

Frequency: 2400–2483.5 MHz

Valve with solar panel

Operating temperature: 1°C to 60°C

Water pressure range: 0 to 10 bar

Power supply: solar + 2× AA Ni-MH rechargeable batteries (not included)

Protection: IP65

Dimensions: 176 × 112 × 66 mm

Color: black

Soil moisture and temperature sensor

Temperature measurement range: -10 °C to 60 °C

Humidity measuring range: 0-100%

Power supply: 2× AA (not included)

Battery life: 1 year

Protection: IP67

Dimensions: 180 × 46.5 × 46.5 mm

Needle length: 60 mm

Color: white
