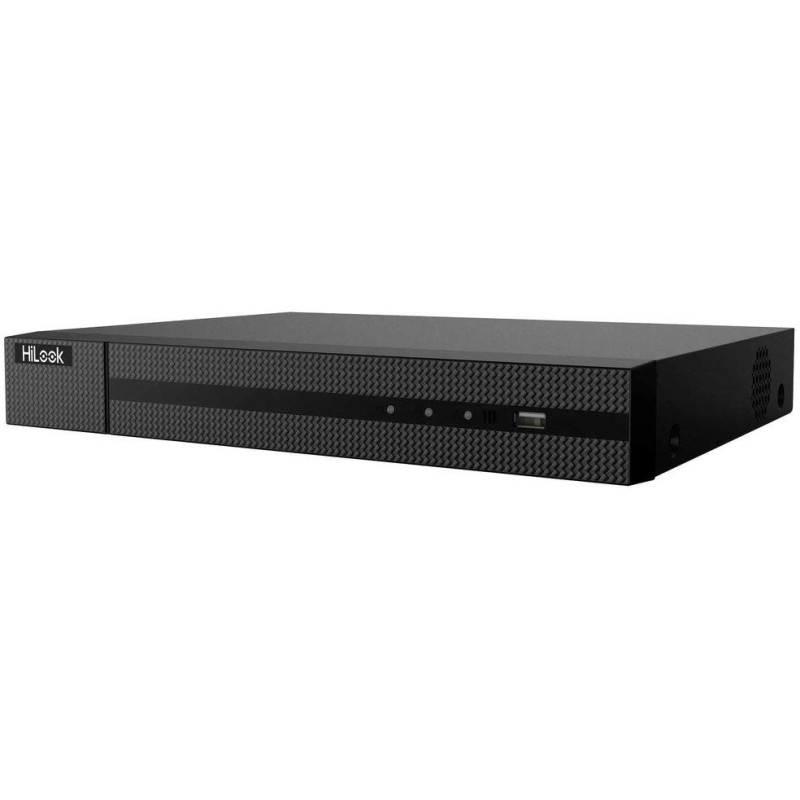

HiLook Powered by HIKVISION/ NVR-216MH-C/16P(D)/ 16 cameras/ 16x PoE/ 8Mpix/ HDMI/ VGA/ 2x USB/ LAN/ 2x SATA/ Metal

Professional 16-channel network video recorder with integrated PoE ports for complete security systems.

The HiLook NVR-216MH-C/16P (D) network video recorder is a comprehensive solution for medium and larger security installations. It supports up to 16 IP cameras with direct power supply via PoE ports , which greatly simplifies installation and reduces cabling costs. The recorder handles incoming bandwidth up to 160 Mbps and offers advanced H.265+ compression , which reduces storage requirements by up to 75%.

The device provides 4K HDMI output for detailed viewing while supporting VGA output for flexible monitor connections. With storage capacity of up to 16TB on two SATA drives, it ensures long-term archiving of recordings with intelligent functions for quick search.

Intelligent analysis and detection
The recorder features advanced Motion Detection 2.0 with the ability to distinguish between human and vehicle movement on 4 channels simultaneously. It supports a wide range of VCA analyses including line crossing detection, area intrusion detection and other configurable events.

Flexible network connection
In addition to 16 PoE ports, it offers a separate Gigabit Ethernet port for network connectivity. It supports up to 32 simultaneous remote connections and a full suite of network protocols including DHCP, DDNS, RTSP, and UPnP.

Professional construction
The compact 1U chassis with dimensions of 385 × 315 × 52 mm allows installation in standard 19" racks. The operating temperature of -10 to +55 °C and low power consumption of max. 15 W without HDD ensure reliable operation.
