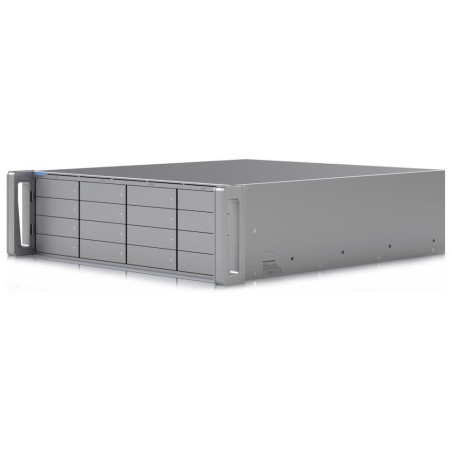

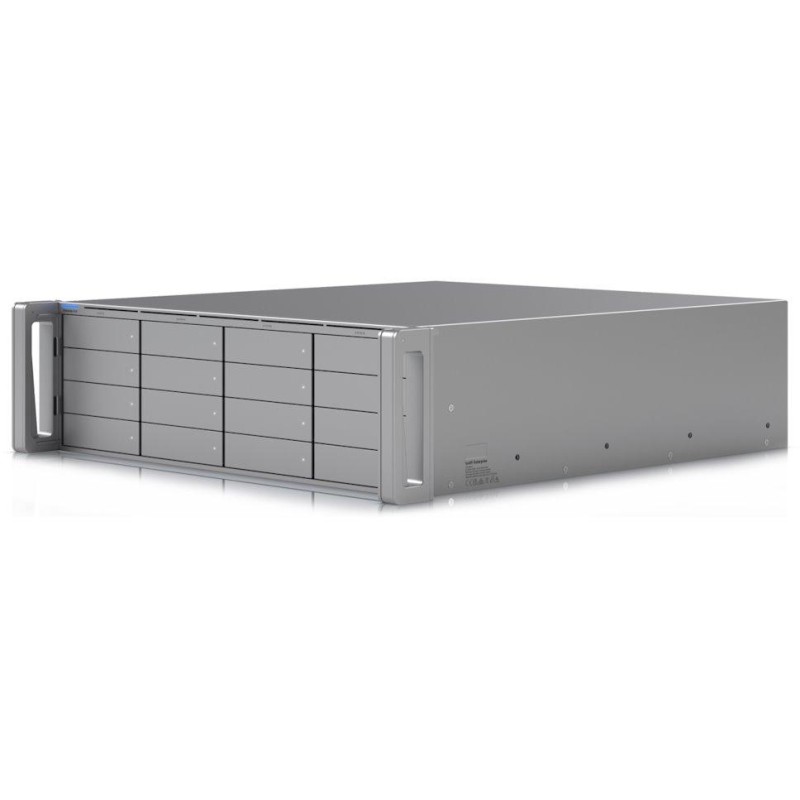

Ubiquiti ENVR Enterprise Network Video Recorder - NVR, 16x 2.5/3.5" HDD slot, 3U, RAID1/RAID5/RAID10, 2x SFP+, 1x 10GbE

Ubiquiti Enterprise Network Video Recorder

3U NVR with 16× 2.5/3.5" drive bays . Supports up to 70 cameras with 4K resolution or 210 cameras with Full HD resolution. There are two 10G SFP+ slots for uplink and one 10GbE RJ-45 port. Data protection using RAID storage technology is a matter of course.

The package includes two hot-swap power supplies for power redundancy.

•

• 16 bays for 2.5/3.5" HDD/SSD drives

• Two 10G SFP+ and one 10GbE RJ-45

• Data protection with RAID storage technology

• Redundant power supply

• Capacity up to 210 HD cameras or 140 2K cameras or 70 4K cameras


BASIC SPECIFICATIONS

Interface: 2× 10G SFP+, 1× 10GbE RJ-45

Capacity of connected cameras: 210× FHD, 140× 2K, 70× 4K

Power supply: 2× AC 100-240 V / 7 A (redundant, hot-swappable)

Consumption: max. 410 W (max. power consumption of disks is 310 W)

Design: 3U rack

Dimensions: 481.4 × 480 × 132 mm

Weight: 16.6 kg

LED Indication

•

• Blue/white: power

• White flashing: system booting in progress

• Blue flashing: firmware update

• Solid white: factory default setting, waiting for acceptance

• Solid blue: device is accepted


Manual (assembly instructions):

https://dl.ui.com/qig/envr/#index
