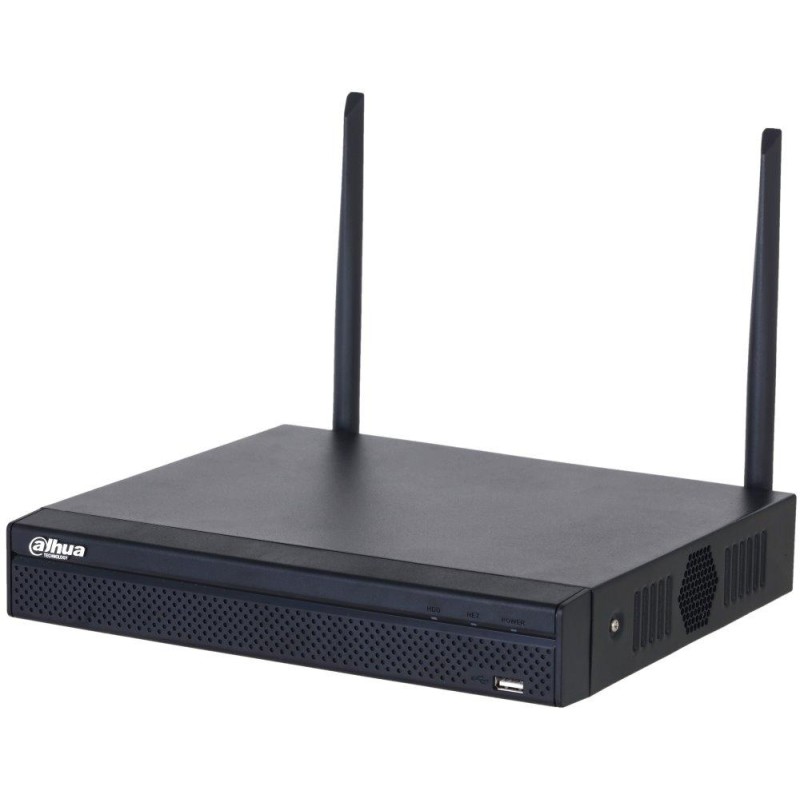

DAHUA NVR recorder NVR1104HS-W-S2/ for 4 cameras/ 6Mpix resolution/ HDMI/ VGA/ Wi-Fi/ LAN/ SATA/ up to 16 TB

Dahua NVR1104HS-W-S2

Recording device for 4 IP cameras . Combinations of different resolutions up to 6 Mpx and data flow up to 40 Mbps are allowed. Support for live view, saving and playback of the connected camera. The device also supports third-party cameras and Smart H.265 decoding, thanks to which you can save up to 75% of the data volume. There is one slot for a SATA hard drive with a capacity of up to 16 TB. It is equipped with a Wi-Fi interface (802.11b/g/n, 2.4 GHz) and two antennas that together create a strong wireless signal. You will also be pleased with the control web interface, local graphical interface (Local GUI), mobile access (iOS, Android) and P2P support.

BASIC SPECIFICATIONS

Video+audio:

•

• 1× RJ-45 (10/100 Mbps) for connecting up to 4 IP cameras

• Direct support for ONVIF cameras

• Resolution: 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 2 Mpx, 720p, D1

• Recording format and compression Smart H.265, H.265, Smart H.264, H.264, MJPEG

• Monitor outputs: 1× HDMI, 1× VGA, simultaneous video source output for VGA and HDMI

• Playback: Multi-channel playback

• Preview (Multi-screen Display): 1/4

• Remote access from Android and iOS mobile devices


Record:

•

• Hard disk storage, 1 bay, up to 16 TB capacity, SATA interface

• Supports external backup to USB device or network backup


Image processing:

•

• Bandwidth 40 Mbps (incoming/uploading), 20 Mbps (outgoing), wireless 16 Mbps (incoming/uploading)

• Summary view of all connected cameras on local video output: combination 1/4

• Recording modes: manual, motion detection, alarm, scheduled

• NTP (Network Time Protocol) support


Wi-Fi+Ethernet:

•

• Wi-Fi, IEEE 802.11b/g/n (2.4GHz)

• 1× LAN 10/100 (RJ-45)

• DDNS and DHCP support allows easy device connection and remote monitoring via the Internet even for subscribers without a fixed IP address

• Protocol and service support: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, Alarm Server, P2P


Physical properties:

•

• 1× 10/100Mbps RJ-45, 2× USB 2.0, 1× SATA HDD bay (max. 16 TB), 1× HDMI, 1× VGA

• 1x audio input (RCA), 1x audio output (RCA)

• Power supply DC 12 V/ 1.5 A, power consumption without disks up to 10 W

• Operating temperature -10 to +45 °C

• Dimensions: 260.3 × 247.3 × 44.7 mm

• Weight: 824g


Software equipment:

•

• The device comes with free software for managing and monitoring multiple devices at once, it is a convenient management of devices (XVR/DVR/NVR/IP cameras) via IP connection. The software allows you to search for devices, live view and record channels according to specified criteria. You can download the application including the manual on our FTP. You can also find other useful utilities for management and service on our technical support FTP.

• The device supports remote connections using P2P technology using the device's serial number (not IP address), so a public IP address is not needed when requesting access from the Internet.

• For mobile access, use the DMSS app; downloadDownload and install from application system bases (Google/Apple store).
