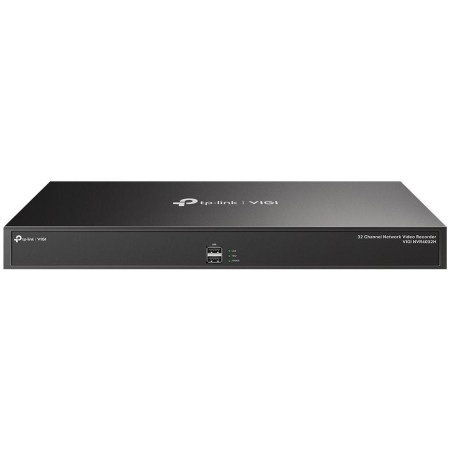

TP-Link VIGI NVR4032H
32-channel network video recorder VIGI.
Recording device for 32 IP cameras . Combinations of different resolutions up to 8 Mpx and data flow up to 320 Mbps are allowed. Support for live view, storage and playback of connected cameras. The device also supports third-party cameras (ONVIF) and H.265+ decoding, which saves data volume/traffic. There are 4 slots for SATA hard drives with a capacity of up to 10 TB/disk.
- Capacity 16 channels at 2 Mpx/ 8 channels at 4 Mpx: You can simultaneously watch multiple channels, live broadcasts and play them back at the same time.
- H.265+: Cameras transmit compressed, crystal-clear images without using additional bandwidth, saving disk space, reducing network load, and monitoring costs—all without compromising image quality.
- HDMI and VGA outputs: Support independent video output.
- 320 Mbps bandwidth for both incoming and outgoing traffic: This allows the NVR to handle multiple high-definition cameras.
- 4× SATA storage: Supports up to four SATA disk drives, each up to 10TB in size.
- ONVIF ensures compatibility*: Easily add IP cameras from VIGI and other brands and create a powerful and diverse network with barrier-free compatibility.
- 16-channel simultaneous playback: You can play back recordings from up to 16 cameras simultaneously, accelerate playback speed, and easily search for events in the recording overview for convenient content viewing.
- 2× RJ-45 port: Supports up to three network modes, including multi-homed mode, fault tolerance, and load balancing.
- Plug & Play: The new NVR allows new and previously unused VIGI IP cameras to be automatically added and activated immediately.
- Remote Management: Thanks to the dedicated VIGI app, web user interface and VIGI Security Manager, remote monitoring is simple and convenient.
- Ease of installation: Rack mounting saves space and simplifies installation.
BASIC SPECIFICATIONS
Number of channels: 32
Supported resolutions (recording): 8 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, CIF
Ports: 1× HDMI output (4K), 1× VGA output, 1× RS-232, 2× GbE RJ-45, 1× USB 3.0, 2× USB 2.0, 1× audio input, 1× audio output, 16× alarm input, 4× alarm output
HDD: 4× SATA (max. 10 TB/disk)
PoE support: no
Dimensions: 440 × 330 × 44 mm
Weight: 4 kg
* Some features may not work optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
