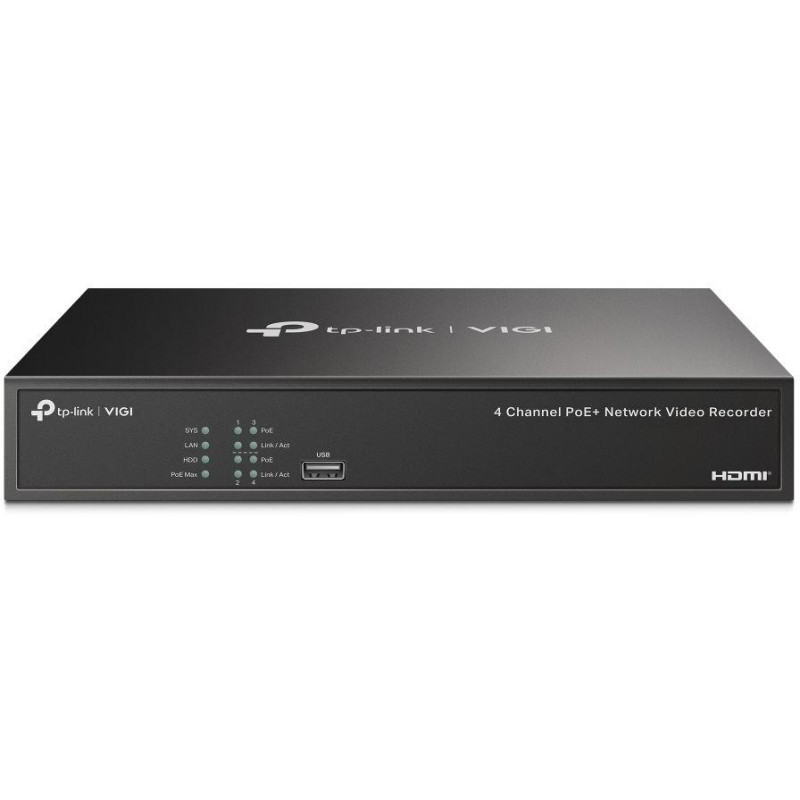

TP-Link VIGI NVR1004H-4P
4-channel VIGI network video recorder with PoE+ support.
Recording device for 4 IP cameras . Combinations of different resolutions up to 8 Mpx and data flow up to 80 Mbps are allowed. Support for live view, storage and playback of connected cameras. The device also supports third-party cameras (ONVIF) and H.265+ decoding, which saves data volume/traffic. There is 1 slot for a SATA hard drive with a capacity of up to 10 TB.
- 4K HDMI video output and 16MP decoding capacity: Sharp image resolution of up to 8MP and 4-channel display ensure you capture every detail from every angle.
- Simplified deployment with PoE+: Easily connect and power a PoE camera with a single RJ-45 cable that carries both data and power. No power adapter required.
- 4-channel simultaneous playback: Play back footage from up to 4 cameras simultaneously, increase playback speed, and search for events in the video schedule to easily review footage.
- H.265+: Without using additional bandwidth, your camera transmits compressed, crystal-clear video, saving disk space, easing network load, and reducing monitoring costs without compromising image quality.
- ONVIF* ensures compatibility: Easily add IP cameras from VIGI and other brands and create a powerful and diverse network with barrier-free compatibility.
- 24/7 Continuous Recording: Stores up to 10TB of footage from connected cameras to secure your data for quick and convenient access.
- Remote Monitoring: Dedicated VIGI app, web user interface and VIGI Security Manager enable remote monitoring.
- Flexible Installation: Choose a suitable installation method by simply placing your NVR in a rack or placing it on a desk or under a table for added convenience.
- Two-way audio: With voice intercom support, have two-way conversations and monitor your channel from anywhere. Great for management.
- 80Mbps Bandwidth: High bandwidth for video access ensures your NVR can handle multiple high-definition cameras. Based on lab testing with VIGI cameras, the NVR can manage up to four 4MP cameras.
Every angle on one screen.
It offers 4K HDMI video output and decoding capability up to 16 Mpx.
4× PoE+ ports for simplified connection of IP cameras.
The NVR is equipped with 4× 10/100Mb/s PoE+ ports and supports up to 30W on each PoE+ port.
Viewing records is faster than ever before.
Play back footage from up to 4 cameras simultaneously, increase playback speed, and search for events in the video schedule to easily review footage.
More compression. More savings. Same quality.
The cameras transmit compressed, crystal-clear images without using additional bandwidth, saving disk space, reducing network load and monitoring costs – all without compromising image quality.
No need to check long compatibility lists.
Easily add IPCs from VIGI and other brands to create a powerful and diverse network thanks to barrier-free compatibility.
Plug & Play.
Allows automatic addition of new ones and does not useVIGI IP cameras to the new NVR and their immediate activation, making installation faster than ever before.
Security measures for every hour and every day.
It stores up to 10 TB of recordings from managed cameras and secures data for quick and convenient access.
Keep track of things even when you're on the go.
Dedicated VIGI applications, a web user interface, and VIGI Security Manager enable remote monitoring that is easy and convenient.
Welcome visitors before entering.
With voice intercom support, you can have a two-way conversation while monitoring your channel from anywhere. Convenient for management.
More bandwidth for high-resolution cameras.
High bandwidth for video access ensures that your NVR can handle high-definition cameras. Based on laboratory tests with VIGI cameras, VIGI NVR can manage up to four HD cameras.
One system. Complete security.
The professional VIGI surveillance system from TP-Link is designed to protect your business - anytime, anywhere.
BASIC SPECIFICATIONS
Number of channels: 4
Supported resolutions (recording): 8 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Ports: 1× HDMI output (4K), 1× VGA output, 1× RJ-45 (10/100 Mbps), 4× RJ-45 (PoE support), 2× USB 2.0, 1× audio input (RCA), 1× audio output (RCA)
HDD: 1× SATA (max. 10 TB)
PoE support: yes, 802.3at/af, max. 53 W
Dimensions: 246.2 × 148.2 × 45 mm
* Some features may not work optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
