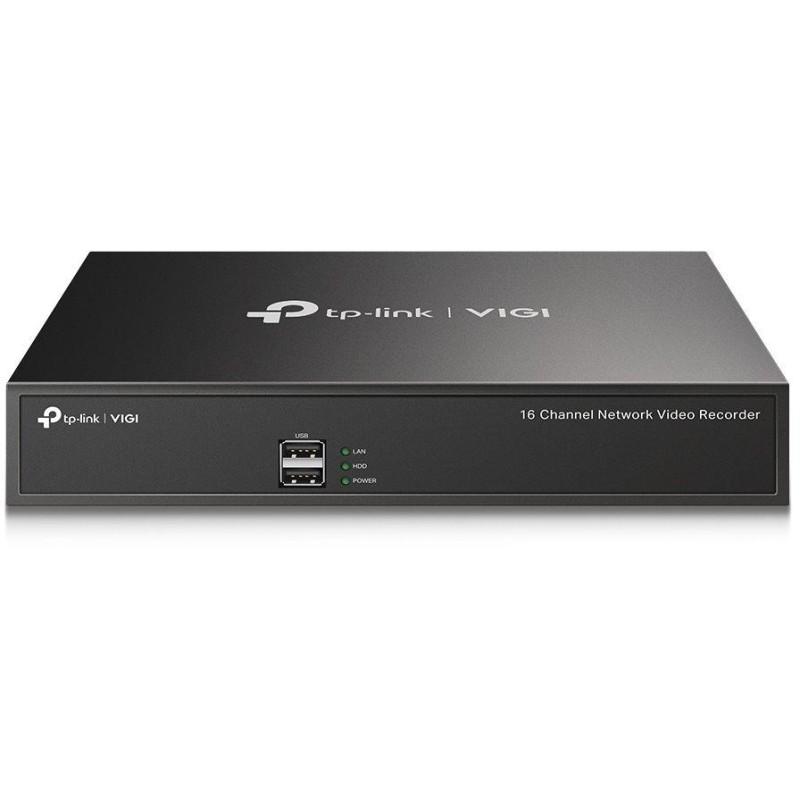

TP-Link VIGI NVR1016H
VIGI 16-channel network video recorder
Recording device for 16 IP cameras . Combinations of different resolutions up to 8 Mpx and data flow up to 80 Mbps are allowed. Support for live view, storage and playback of connected cameras. The device also supports third-party cameras (ONVIF) and H.265+ decoding, which saves data volume/traffic. There is 1 slot for a SATA hard drive with a capacity of up to 10 TB/disk.
- Continuous recording 24/7: Stores up to 10TB of footage from connected cameras and secures data for quick and convenient access.
- 16-channel real-time live view: Sharp image resolution of up to 8 megapixels and 16-channel display ensure every detail is captured from every angle.
- Quick search and playback: Easily search for target footage by date, event types, and tags. Variable speed playback for quick viewing of recordings.
- Remote Monitoring: A special VIGI app has been developed for easy and convenient remote monitoring.
- H.265+: The camera transmits compressed crystal-clear images without using any additional bandwidth, saving disk space, reducing network load and monitoring costs without losing image quality.
- ONVIF compatibility assurance*: With barrier-free compatibility, you can easily add IPCs from VIGI and other brands to create a powerful and diverse network.
- Single HDD interface (up to 10TB): Up to 10TB (up to 720 days of video) can be stored on the SATA HDD, so your data is safely stored locally.
- Two-way audio: With voice intercom support, you can have a two-way conversation while monitoring your channel from anywhere. Suitable for management.
- 80 Mbit/s Video Access Bandwidth: Thanks to the high video access bandwidth, the NVR can handle multiple high-definition cameras. Based on laboratory tests with VIGI cameras, the VIGI NVR can handle up to 16 4Mpx cameras.
BASIC SPECIFICATIONS
Number of channels: 16
Supported resolutions (recording): 8 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Ports: 1× HDMI output (4K), 1× VGA output, 1× RJ-45 (10/100 Mbps), 2× USB 2.0, 1× audio input (RCA), 1× audio output (RCA)
HDD: 1× SATA (max. 10 TB)
PoE support: no
Dimensions: 246.2 × 148.2 × 45 mm
Weight: 578.5g
* Some features may not work optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
