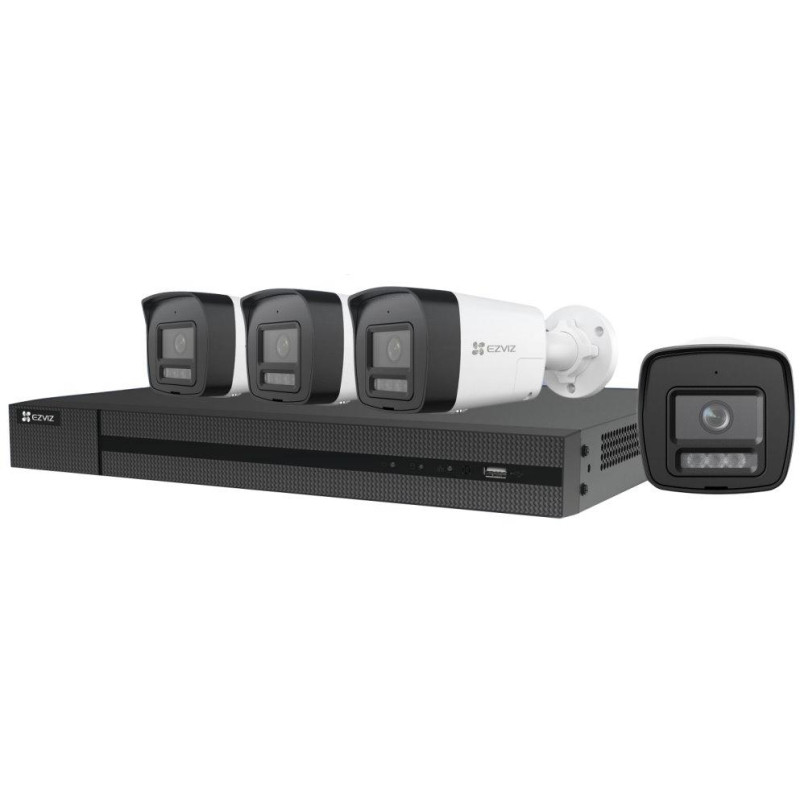

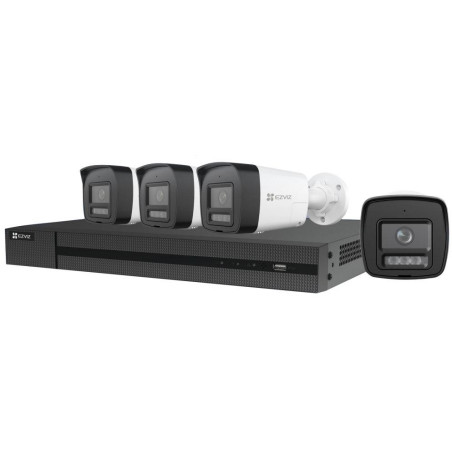

EZVIZ X5K KIT
A set of recording equipment and four security cameras.
4× H3K camera
The outdoor IP camera offers a 1/2.7" CMOS sensor with a resolution of 8 Mpx , which is capable of recording video in 3840 × 2160 resolution at 15 fps . In case of poor lighting conditions, there is IR illumination up to a distance of 30 m and white LED illumination for capturing color recordings at night. H.265+/H.264+ compression reduces data transfer and storage requirements. Recorded recordings can be stored on a microSD card with a capacity of up to 512 GB, or sent to cloud storage (based on a subscription). Active deterrence in the form of a strobe light and an audible alarm then warns potential intruders. The camera includes an integrated speaker and microphone , which enable high-quality two-way communication. Connecting the camera using an application on a mobile device allows for convenient remote access, taking recordings or photos, or notifications in the event of motion detection . Other useful functions include, for example, recognition of human figures and vehicles using artificial intelligence or a customizable motion detection area. The connection can be easily made wired via an RJ-45 connector. Thanks to the waterproof housing according to IP67 , it offers both indoor and outdoor use.
X5K recorder
Recording device for 8 IP cameras with PoE power support. Combinations of different resolutions up to 8 Mpx and data rate up to 80 Mb/s are allowed. The device also supports H.265+ decoding, thanks to which you can save data volume. There are two slots for SATA hard drives with a capacity of up to 8 TB/disk (1× 2 TB HDD included).
The package includes 1× 2TB hard drive , 4× drilling template, 4× waterproof kit, 5× screw kit, mouse, power adapter, power cable, HDMI cable and 5× Ethernet cable (4× 18 m long).
BASIC SPECIFICATIONS
4× camera
Sensor chip: 1/2.7" CMOS
Sensor resolution: 8.0 Mpx
Day/Night: yes
Integrated IR illuminator: yes, up to 30 m
Integrated LED light: yes, up to 30 m
Lens: f = 2.8 mm, fixed, angle of view horizontal 113°, vertical 62°, diagonal 134°
Maximum resolution: 3840 × 2160 at 15 fps
Interface: 1× RJ-45
Memory card slot: yes, microSD (max. 512 GB)
Power supply: DC 12 V/ 0.66 A, or PoE (802.3af)
NVR
Number of channels: 8
Supported resolutions: 8 Mpx, 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF
Ports: 1× HDMI output (4096 × 2160 px), 1× VGA Full HD output, 2× USB 2.0, 1× audio input (RCA), 1× audio output (RCA), 1× RJ-45 (10/100 Mbps), 8× RJ-45 (PoE support)
HDD: 2× SATA (1× 2TB HDD included, max. 8 TB/disk)
PoE support: yes, 802.3af (total budget 80 W)
Dimensions: 385 × 315 × 52 mm
Weight: 2.6 kg
