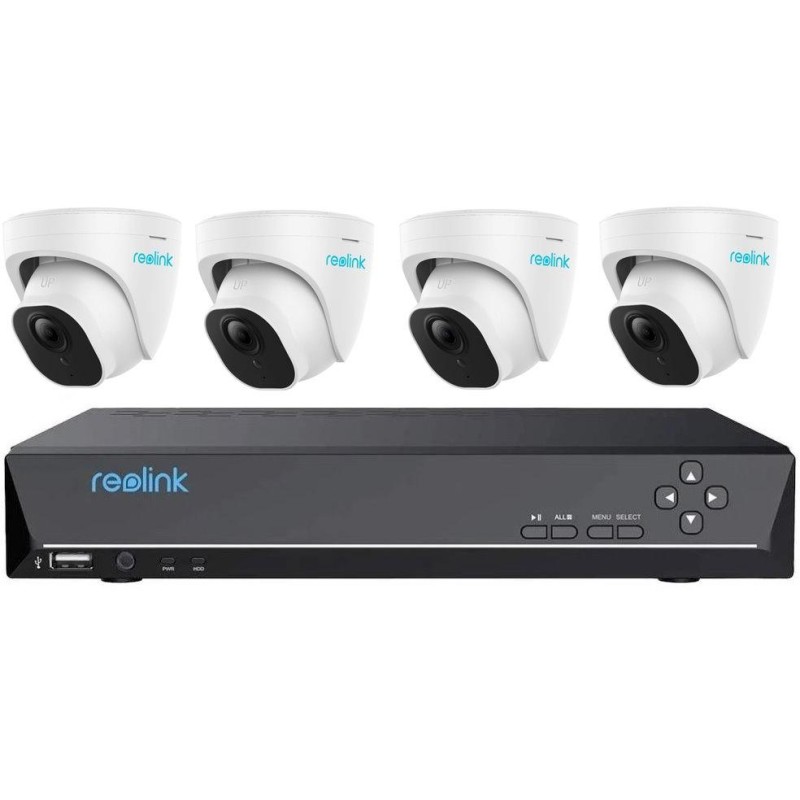

Reolink NVS8-8MD4
A set of recording equipment and four 8Mpx cameras.
NVS8 recorder
Recording device for 8 IP cameras with PoE power support (max. 25 W per port, IEEE 802.3af/at). Combinations of different resolutions up to 12 Mpx are allowed. The device also supports H.265 decoding, thanks to which you can save data volume. There is 1 SATA hard drive slot , in which a 2 TB hard drive is pre-installed. It also supports external hard drives with a capacity of up to 6 TB connected via the eSATA interface. The Reolink application allows easy management of all devices and convenient remote access.
P330 camera
The 8-megapixel turret IP camera offers a 1/2.49" CMOS sensor with a resolution of 3840 × 2160 pixels and a viewing angle of 87° (horizontally). In case of poor lighting conditions or darkness, there is IR illumination up to a distance of 30 m . The connection can be easily made using the RJ-45 port . Thanks to the Reolink application, you can monitor what is happening in your home or other spaces 24 hours a day, 7 days a week from anywhere via your smartphone. The camera also has a built-in microphone . Thanks to its IP67 waterproof rating, it can be used both indoors and outdoors.
BASIC SPECIFICATIONS
Recording device
Number of channels: 8
Supported resolutions: up to 12 Mpx
Ports: 1× HDMI 4K output, 1× VGA Full HD output, 2× USB 2.0, 1× RJ-45 (10/100 Mbps), 8× RJ-45 (PoE support), 1× audio output (RCA), 1× eSATA
HDD: 1× SATA (1× pre-installed 2TB HD, max. 6 TB)
PoE support: yes, 802.3af/at (max. 25W per port)
Dimensions: 260 × 230 × 41 mm
Weight: 1.4 kg
P330 camera
Sensor chip: 1/2.49" CMOS
Day/Night: yes
Integrated IR illuminator: yes, up to 30 m
Lens: f = 4 mm, fixed, angle of view horizontal 87°, vertical 44°
Maximum resolution: 3840 × 2160 at 25 fps
Interface: 1× RJ-45
Memory card slot: yes, microSD (max. 256 GB)
Material: aluminum
Power supply: DC 12 V/ 1 A, or PoE (802.3af), consumption max. 12 W
Note: Reolink NVRs are only compatible with Reolink security cameras.
