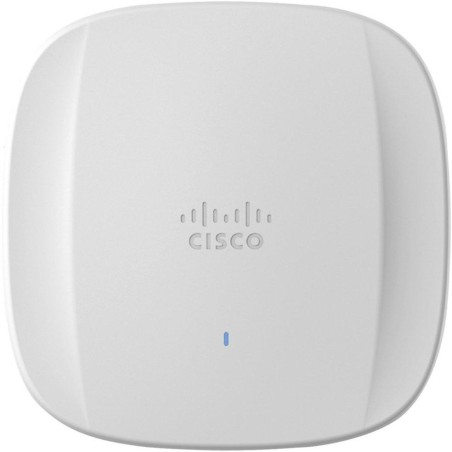

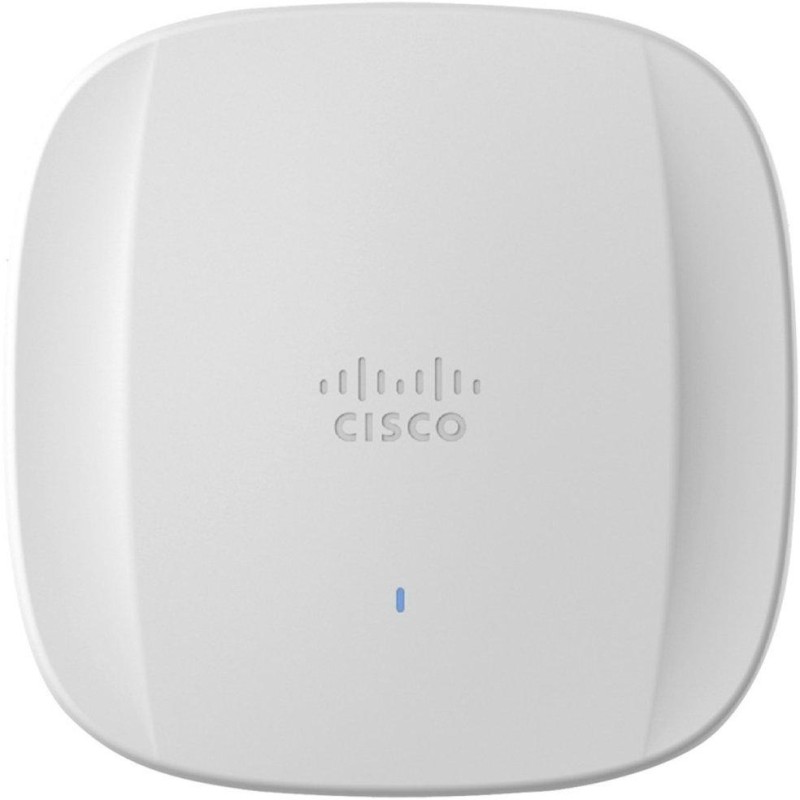

Cisco Catalyst 9166I AP (W6E, tri-band 4x4, XOR) w/Reg-E

Cisco Catalyst CW9166I-E

The Cisco Catalyst CW9166I-E is an access point that supports Wi-Fi 6E (802.11ax) , meaning it supports the 6 GHz band in addition to the traditional 2.4 GHz and 5 GHz bands. This provides greater capacity and lower latency, making it ideal for environments with high user and device density. This model is designed for enterprise applications such as offices, schools, and public spaces where high performance and reliability are needed. The CW9166I-E offers integrated security features and easy management, making it easy to deploy in modern networks.

Key features:

•

• Wi-Fi 6E (802.11ax) – Support for 2.4 GHz, 5 GHz and now 6 GHz bands for higher capacity and better performance.

• High capacity for multiple devices – Optimized for high-density user environments such as offices and public spaces.

• MU-MIMO (Multi-User MIMO) support – Improves performance when connecting multiple devices simultaneously.

• Interference Protection (BSS Coloring) – Reduces interference between channels and improves overall network performance.

• Integrated security software – Supports encryption and connection protection for secure device connections.

• PoE+ (Power over Ethernet) – Power over Ethernet cable for easier and cleaner installation.

• Automatic setup and management – Easy management with Cisco DNA Center or Cisco Meraki for efficient configuration and monitoring.

• Compact design for demanding environments – Suitable for installations in various spaces such as schools or offices.

• Lower latency and better spectral efficiency – The 6GHz band ensures better performance even in more demanding conditions.


BASIC SPECIFICATIONS

Standard: IEEE 802.11a/b/g/n/ac/ax

Data transfer rate: up to 7.78 Gbps

Ports: 1× mGig RJ-45 (5 Gbps), 1× RJ-45 console, 1× USB 2.0

Frequency: 2.4GHz, 5GHz, 6GHz

Security: WPA2-PSK, WPA2-Enterprise, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)

PoE support: yes, PoE+ 802.3af/at

Dimensions: 241.3 x 241.3 x 56.9 mm
