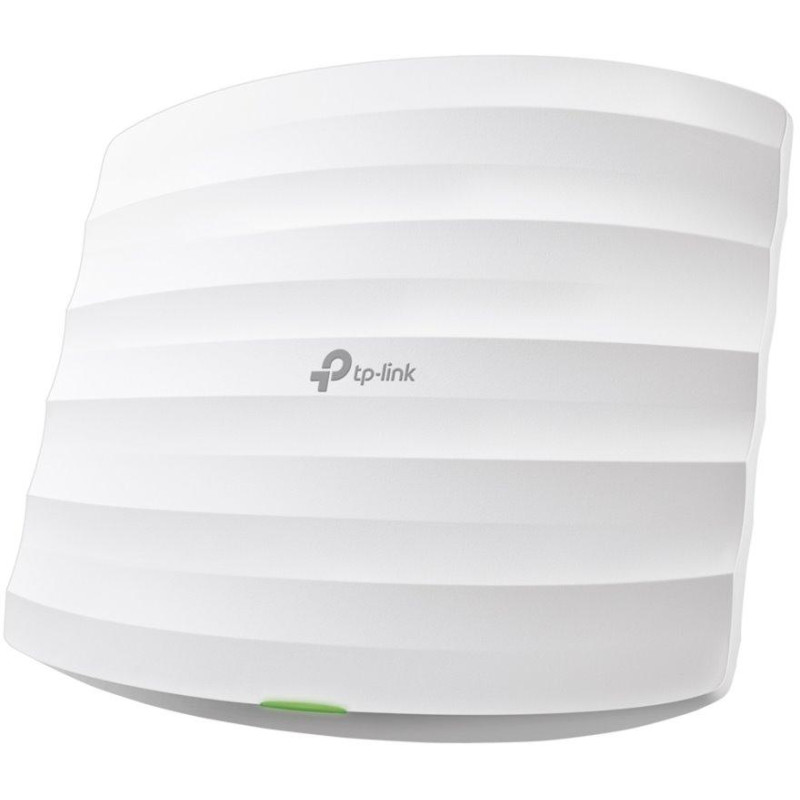

TP-Link EAP223 AC1350 Ceiling DualBand Wi-FI 5 AP, 1x GLAN, 450 + 847Mbps, PoE, without PoE adapter

Professional ceiling access point with the latest 802.11ac Wave 2 MU-MIMO technology for corporate networks.

The EAP223 access point features advanced MU-MIMO (Multi-User MIMO) technology, which, unlike traditional SU-MIMO solutions, can send data to multiple devices simultaneously , significantly reducing latency and increasing overall connection speed. It achieves speeds of up to 1350 Mbps in a dual-band Wi-Fi network and supports more than 220 simultaneously connected clients .

The device is part of the Omada SDN (Software Defined Network) platform, which integrates network devices including access points, switches, and gateways into one centrally managed system. With 100% centralized cloud management, you can control your entire network from multiple locations through a single interface, anywhere, anytime.

Advanced features for corporate environments
The access point supports up to 16 SSIDs (8 for each band), seamless roaming according to 802.11k/v/r standards, Omada Mesh technology and intelligent bandwidth management. It also features advanced QoS features, traffic scheduling and detailed connection statistics.

Flexible power supply and installation
The device can be powered by either standard 802.3af PoE or passive PoE (+4.5 pins; -7.8 pins). Mounting kits for ceiling and wall installation are included. Maximum power consumption is only 12.6 W.

Ideal use
The access point is designed for demanding operation in large spaces such as corporate offices, hotels, restaurants, cafes, stores and schools, where standard home routers cannot provide a stable connection for a large number of users.

BASIC SPECIFICATIONS

Wireless standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz (dual band)

Signal speed: up to 867 Mbps (5 GHz) + up to 450 Mbps (2.4 GHz)

Coverage: 115 m2 (1250 ft2)

Current clients: 220+

Antennas: 3× internal omnidirectional (2.4 GHz: 4 dBi, 5 GHz: 5 dBi)

Interface: 1× Gigabit Ethernet (RJ-45) with PoE support

Power supply: 802.3af PoE or 24V passive PoE (adapter not included)

Consumption: max. 12.6 W

Dimensions: 205.5 x 181.5 x 37.1mm

Operating temperature: 0-40°C

Certification: CE, FCC, RoHS
