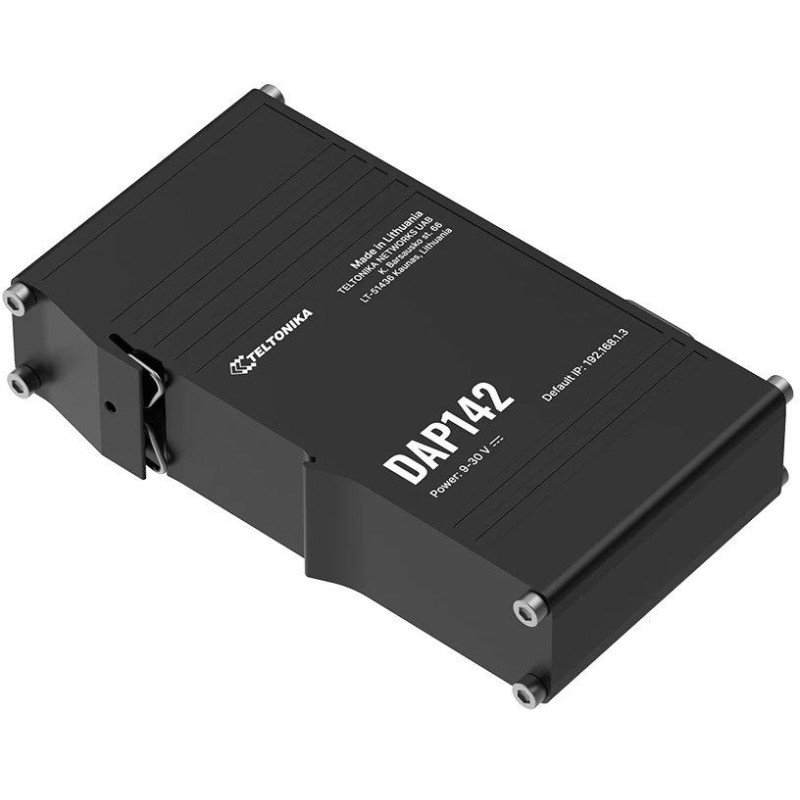

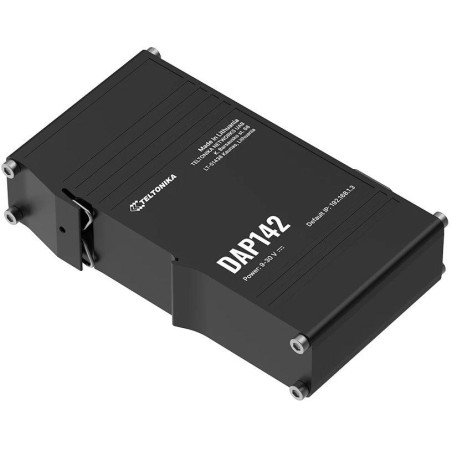

Teltonika DAP142
Industrial wireless access point with passive PoE power support, designed for demanding industrial environments. Supports Wi-Fi 4 (802.11 b/g/n) with advanced features such as Wi-Fi mesh (802.11s), Fast Roaming (802.11r), BSS Transition Management (802.11v) and more.
The device is DIN rail mountable , features a durable aluminum chassis, and supports up to 50 simultaneous users . The QR code feature for Wi-Fi connection makes deployment very easy.
- Connection: IEEE 802.11b/g/n (Wi-Fi 4)
- Wi-Fi: wireless access point with Hotspot function
- WAN failover: automatic switchover to an available backup connection
- RMS: remote management, access and VPN services
- Protocols: support for many protocols including MQTT, Modbus and DNP3
- Design: aluminum body, IP30 protection
More information can be found in the datasheet or on the page wiki.teltonika-networks.com/view/DAP142 .
Software:
- Operating system: RutOS (OpenWrt-based Linux operating system)
- Network features: VoIP passthrough support, connection monitoring, firewall, firewall status page, port management, network topology, DHCP, QoS/Smart Queue Management (SQM), DDNS, network backup, load balancing, hotspot 2.0, SSHFS, VRF support
- Security: Authentication, firewall, attack prevention, VLAN, WEB filter, access control, SSL certificate generation
- VPN and Tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Monitoring and management: WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
- Cloud solutions: Cloud of Things, ThingWorx, Azure IoT Hub, AWS IoT Core
- Services: OPC UA, MODBUS, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS
BASIC SPECIFICATIONS
Wi-Fi standard: IEEE 802.11b/g/n
Antenna: 1× RP-SMA connector (Wi-Fi)
Security: WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, WPA2-EAP, WPA3-EAP, OWE
Ports: 2x RJ-45 10/100 Mbps, 1x DB9 (RS-232)
PoE support: yes, passive PoE (LAN2)
Power supply: DC 9–30 V (3-pin industrial connector), consumption max. 2 W
Dimensions: 113.1 × 68.6 × 25mm
Weight: 149.2g
Protection class: IP30
Operating temperature: -40 to 75 °C
