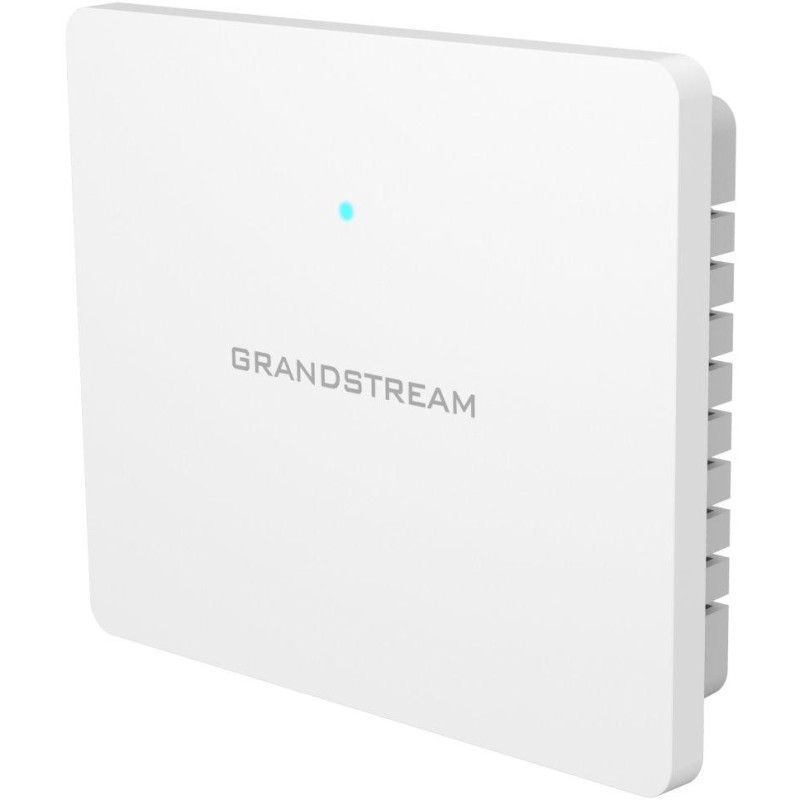

Grandstream GWN7603 access point

Grandstream GWN7603

Wall-mounted Wi-Fi 802.11ac Wave-2 access point designed for small businesses, hotels and home offices. Two high-gain 2-band internal antennas and support for MU-MIMO technology ensure a strong and reliable Wi-Fi signal for up to 100 connected wireless devices . For easy installation and management, it is supported by GWN.Cloud - Grandstream's free cloud platform. With support for QoS, low-latency applications, Mesh networks and captive portals, it is an ideal solution for small to medium-sized deployments that require flexibility.

•

• Aggregate speed 1.27 Gbps (wireless throughput)

• Dual-band 2×2:2 MU-MIMO technology

• Coverage up to 100 meters

• Four gigabit RJ-45 ports: 1× uplink ethernet + PoE/PoE+ input, 2× ethernet + PoE output (up to 6 W/port) and 1× ethernet port

• Support for up to 100 Wi-Fi client devices

• Power adaptation and automatic PoE/PoE+ detection

• Advanced QoS to ensure real-time, low-latency application performance

• Anti-hacking secure boot, critical data/control + digital signature locking, certificate security, random default password for each device

• The built-in controller can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller


BASIC SPECIFICATIONS

Standard: IEEE 802.11a/b/g/n/ac (Wave-2)

Data transfer rate: 5 GHz - 867 Mbit/s, 2.4 GHz - 400 Mbit/s

Antenna: 2× 2-band internal antenna (3 + 3.5 dBi for 2.4 GHz, 3.5 + 3 dBi for 5 GHz)

Ports: 1× GbE RJ-45 (uplink + PoE/PoE+ input), 2× GbE RJ-45 (ethernet + PoE output), 1× GbE RJ-45 (ethernet)

Frequency: 2.4GHz, 5GHz

Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking boot, digital signature/certificate management, random default password

PoE support: yes, PoE/PoE+ (802.3af/at)

Dimensions: 135 × 115 × 30 mm

Weight: 215g
