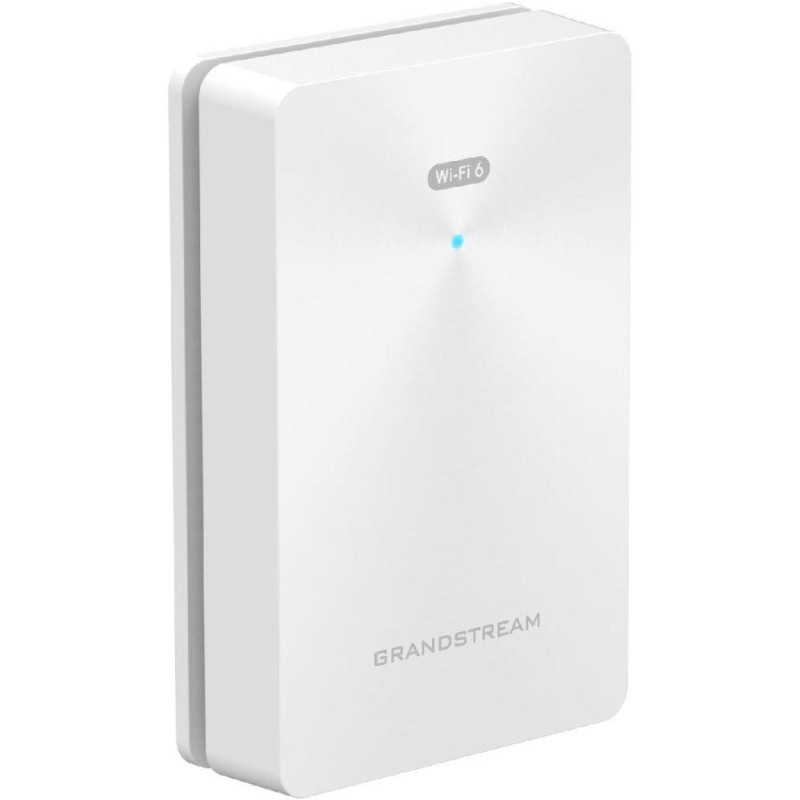

Grandstream GWN7661 Wi-Fi 6 AX1800 Wall-Mount Access Point

Grandstream GWN7661

A wall-mounted Wi-Fi 6 access point designed for medium-density enterprise wireless networks. Four high-gain, single-band internal antennas with OFDMA technology support provide a strong and reliable Wi-Fi signal for up to 500 connected wireless devices . For easy installation and management, it supports GWN.Cloud - Grandstream's free cloud platform. The GWN7661 is an ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions and offers seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, Mesh networks and captive portals, it represents a scalable Wi-Fi solution for deployment in medium-sized enterprises.

•

• Aggregate speed 1.77 Gbps (wireless throughput)

• Dual-band 2×2:2 MU-MIMO technology with DL/UL OFDMA support

• Coverage up to 100 meters

• Four gigabit RJ-45 ports: 1× uplink ethernet + PoE/PoE+ input, 2× ethernet + PoE output (up to 6 W/port) and 1× ethernet port

• Support for up to 500 Wi-Fi client devices

• Power adaptation and automatic PoE/PoE+ detection

• Advanced QoS to ensure real-time, low-latency application performance

• Anti-hacking secure boot, critical data/control + digital signature locking, certificate security, random default password for each device

• The built-in controller can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller


BASIC SPECIFICATIONS

Standard: IEEE 802.11a/b/g/n/ac/ax

Data transfer rate: 5 GHz - 1201 Mbit/s, 2.4 GHz - 573.5 Mbit/s

Antenna: 4× 1-band internal antenna (3.3 + 3.51 dBi for 2.4 GHz, 4.79 + 5.37 dBi for 5 GHz)

Ports: 1× GbE RJ-45 (uplink + PoE/PoE+ input), 2× GbE RJ-45 (ethernet + PoE output), 1× GbE RJ-45 (ethernet)

Frequency: 2.4GHz, 5GHz

Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking boot, digital signature/certificate management, random default password

PoE support: yes, PoE/PoE+ (802.3af/at)

Dimensions: 135 × 86 × 38.5 mm

Weight: 185g
