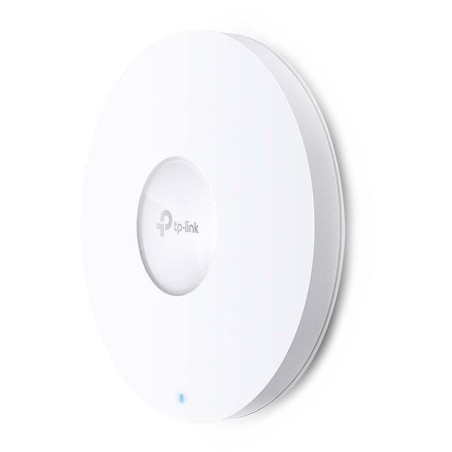

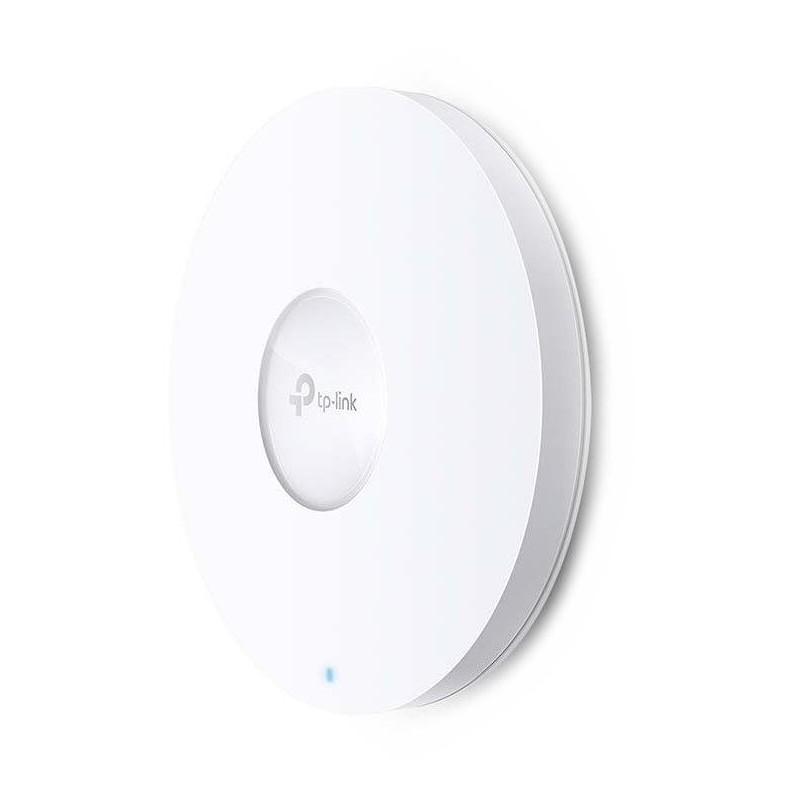

TP-Link EAP613 ceiling AP WiFi 6, 1x GLan, 2.4 and 5 GHz, AX1800, without PoE adapter, Omada SDN

TP-Link EAP613

The dual-band ceiling access point with support for Wi-Fi 6 (802.11ax) ensures, together with MU-MIMO technology, a top-notch dual-band connection with a speed of 574 Mbps in the 2.4 GHz band and 1201 Mbps in the 5 GHz band.

The access point supports both PoE+ power supply and DC 12 V adapter power supply. The elegant appearance and simple wall or ceiling mounting make deployment easier and increase flexibility.

Power adapter and PoE injector are not included.

•

• Ultra-fast Wi-Fi 6 (AX1800): Speeds of 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band.

• Highly efficient Wi-Fi 6: More connected devices can benefit from faster connections.

• Centralized cloud management: The Omada SDN system manages the entire network locally or from the cloud via a web user interface or the Omada app.

• Seamless roaming: Video streams and voice calls are not affected as the user moves between access points.

• Omada Mesh: Enables wireless connectivity between access points for greater range and flexible deployment.

• PoE Support: Supports Power over Ethernet (PoE+ 802.3at) for flexible deployment and installation.

• Gigabit Ethernet: The access point is equipped with a 1 Gb/s RJ-45 port for increased throughput.

• Secure Guest Network: Provides multiple authentication options (SMS, Voucher, etc.) and a range of wireless security technologies.


BASIC SPECIFICATIONS

Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax

Data transfer rate: 2.4 GHz - 574 Mbit/s, 5 GHz - 1201 Mbit/s

Antenna: 2× 4 dBi + 2× 5 dBi integrated antenna

Ports: 1× GbE RJ-45

Frequency band: 2.4GHz, 5GHz

Security: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X support

PoE support: yes, 802.3at + passive PoE (48V)

Dimensions: 160 × 160 × 33.6 mm
