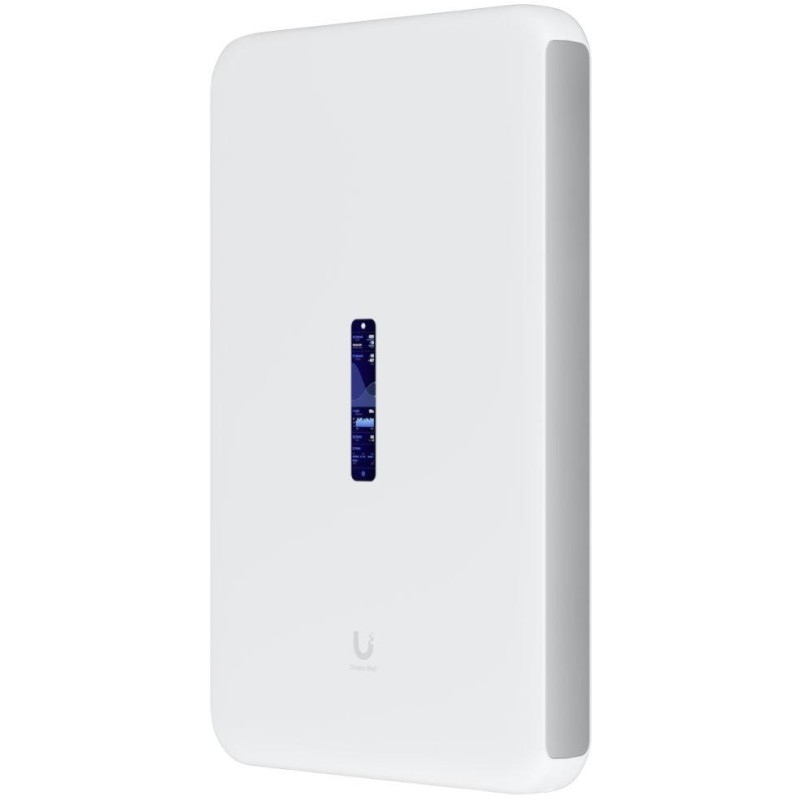

Ubiquiti UniFi Dream Wall - Router, Wi-Fi 6, UniFi OS, 17x GbE, 1x 2.5GbE, 2x SFP+, 128GB SSD, PoE++ (PoE budget 420W)

The Ubiquiti UniFi Dream Wall All-in-one UniFi OS console combines a security gateway, high-speed access point, network video recorder (NVR) and gigabit PoE switch into one compact device that can be easily installed on a wall. It helps home and business owners seamlessly expand and manage networks thanks to high-speed connectivity with two WAN networks (10G SFP+ and 2.5GbE RJ-45 ports). The integrated access point uses the 802.11ax (Wi-Fi 6) standard and offers a transfer rate (aggregated throughput) of up to 2.7 Gbps. Thanks to integrated antennas with a gain of 6 dBi (5 GHz) and 5.9 dBi (2.4 GHz), it provides reliable two-way communication between the AP and more than 300 clients. The device is equipped with the UniFi OS operating system and provides full control over all UniFi devices, including access points, cameras, phones and readers. It is also a future-proof console, as it will be able to run all upcoming UniFi OS applications. Performance stability is ensured by a quad-core ARM Cortex A57 processor operating at a frequency of 1.7 GHz, 4 GB of DDR4 RAM and 16 GB of eMMC memory on board. Device reliability and maximum service availability can be supported by the optional installation of a second power supply. Additional features and benefits: Integrated Wi-Fi 6 (4×4 MIMO) Full support for UniFi OS and UniFi applications 4× PoE, 4× PoE+ and 4× PoE++ outputs VLAN support 4.7" touchscreen management display Optional redundant power supply Integrated SSD (128 GB) and pre-installed microSD card (512 GB) Next-generation security: Application-centric firewall rules IPS/IDS threat detection based on signatures Content, country, domain and ad filtering Traffic segmentation based on VLAN/subnets Full stateful firewall Advanced networking technologies: License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN Teleport and Identity VPN One-click Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy server IPv6 ISP support BASIC SPECIFICATIONS Standard: 802.11a/b/g/n/ac/ax Data transfer rate: 2.4 GHz - 300 Mb/s, 5 GHz - 2.4 Gb/s Antenna: 4×4 MIMO, integrated antenna 5.9 dBi (2.4 GHz) + 6 dBi (5 GHz) Ports: 17× GbE RJ-45 LAN, 1× 2.5GbE RJ-45 WAN, 2× 10G SFP+ ARM Cortex-A57 processor (4-core, 1.7 GHz) Memory size: 4 GB DDR4 RAM + 16 GB eMMC + 128 GB SSD + 512 GB microSD PoE support: yes, 4× PoE++ 802.3bt, 4× PoE+ 802.3at, 4× PoE 802.3af Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) Dimensions: 549 × 342 × 62 mm Weight: 8.6 kg Manual (assembly instructions): https://dl.ui.com/qig/udw.pdf Datasheet: https://dl.ui.com/ds/udw_ds.pdf
