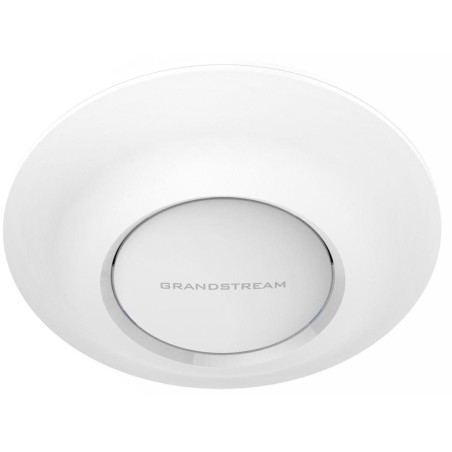

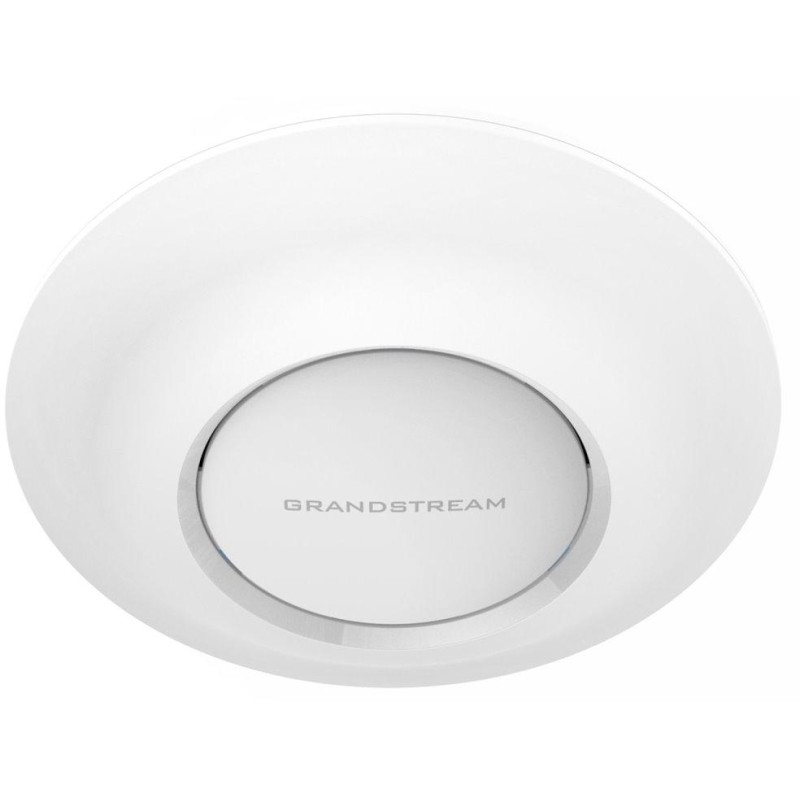

Grandstream GWN7630 access point, 4x antenna, 2x RJ45 Gbps, PoE, 802.3af, 802.3at

Grandstream GWN7630

Ceiling/wall-mounted Wi-Fi 802.11ac Wave-2 access point (2.4 & 5 GHz) designed for small and medium-sized wireless networks. It offers two GbE ports (10/100/1000 Base-T) and 4x4:4 MIMO for 2.4 GHz + 4x4:4 MU-MIMO for 5 GHz. It is supported by GWN.Cloud - Grandstream's free cloud platform for easy installation and management. The GWN7630 is an ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions and offers seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, Mesh networks and captive portals, it represents a scalable Wi-Fi solution for deployments in retail stores, etc.

•

• Technology 4x4:4 MIMO for 2.4 GHz + 4x4:4 MU-MIMO for 5 GHz

• Aggregated speed 2.33 Gbps (wireless throughput), 2x Gigabit port

• Coverage up to 175 meters

• Power adaptation and automatic PoE/PoE+ detection

• Anti-hacking secure boot, critical data/control + digital signature locking, certificate security, random default password for each device

• Support for over 200 Wi-Fi client devices

• The built-in controller can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller


BASIC SPECIFICATIONS

Standard: IEEE 802.11a/b/g/n/ac (Wave-2)

Data transfer rate: 5 GHz - 1733 Mbit/s, 2.4 GHz - 600 Mbit/s

Antenna: 4x 2-band internal antenna (4 dBi for 2.4 GHz, 5 dBi for 5 GHz)

Ports: 2x GbE RJ-45

Frequency: 2.4GHz, 5GHz

Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking boot, digital signature/certificate management, random default password

PoE support: yes, PoE/PoE+ (802.3af/at)

Dimensions: 205.3 x 205.3 x 45.9 mm
