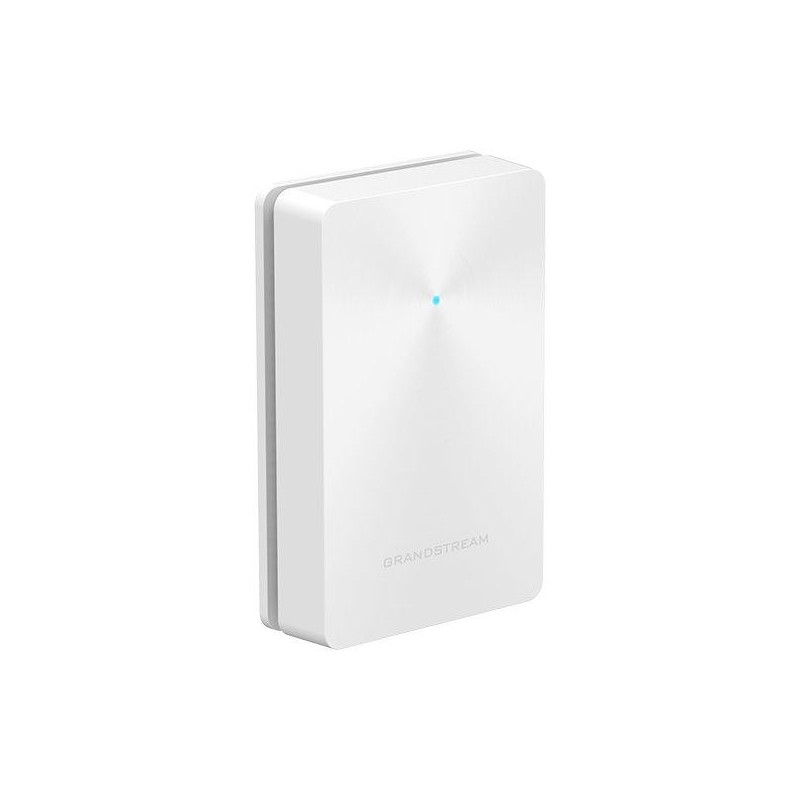

Grandstream GWN7624 access point, Dual Band, 4x RJ45 Gbps, 802.3af, 802.3at, 802.3az

Grandstream GWN7624

Wall-mounted Wi-Fi 802.11ac access point (2.4 & 5 GHz) designed for small and medium-sized wireless networks. It offers four GbE ports (10/100/1000 Base-T) and 2x2:2 MIMO for 2.4 GHz + 4x4:4 MU-MIMO for 5 GHz. For easy installation and management, it supports GWN.Cloud - Grandstream's free cloud platform. The GWN7624 is an ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions and offers seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, Mesh networks and captive portals, it represents a scalable Wi-Fi solution for deployment in retail stores, etc.

•

• Technology 2x2:2 MU-MIMO for 2.4 GHz + 4x4:4 MU-MIMO for 5 GHz

• Aggregated speed 2.03 Gbps (wireless throughput), 4x Gigabit port (1x uplink with PoE/PoE+, 2x PSE max. 6 W)

• Coverage up to 100 meters

• Power adaptation and automatic PoE/PoE+ detection

• Anti-hacking secure boot, critical data/control + digital signature locking, certificate security, random default password for each device

• Support for up to 200 Wi-Fi client devices

• The built-in controller can manage up to 30 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller


BASIC SPECIFICATIONS

Standard: IEEE 802.11a/b/g/n/ac

Data transfer rate: 5 GHz - 1733 Mbit/s, 2.4 GHz - 300 Mbit/s

Antenna: 2x 2-band internal antenna (3 dBi for 2.4 GHz, 5 dBi for 5 GHz)

Ports: 4x GbE RJ-45

Frequency: 2.4GHz, 5GHz

Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking boot, digital signature/certificate management, random default password

PoE support: yes, PoE/PoE+ (802.3af/at)

Dimensions: 135 x 86 x 38.5 mm
