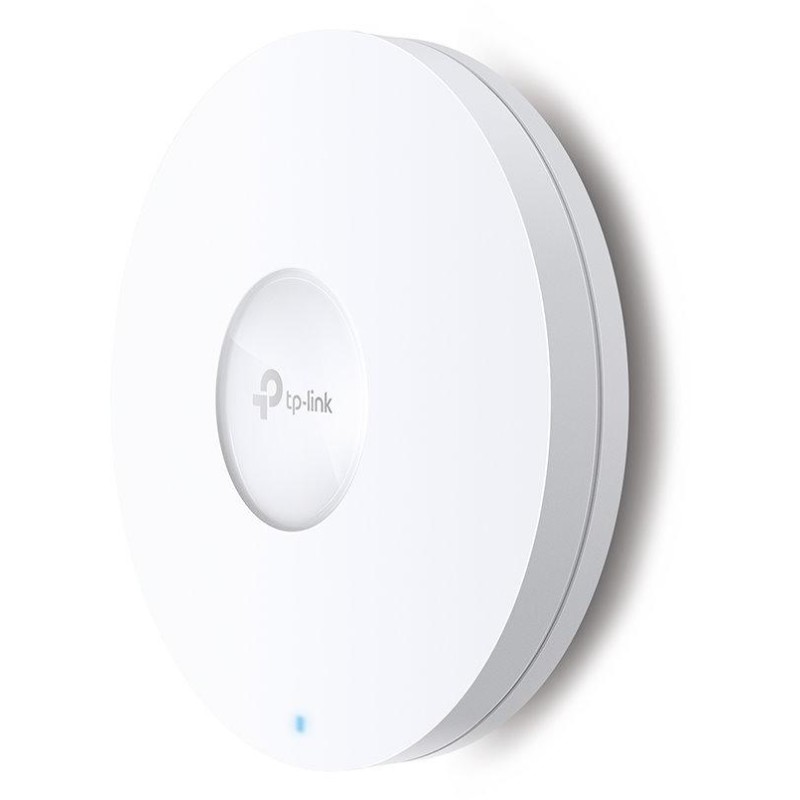

TP-Link EAP670 Ceiling Dual Band Wi-FI 6 AP/ 1x 10/100/2500 Mbps RJ45/ 802.11ac/ax/n/a/b/g/ 4804+574 Mbps

TP-Link EAP670

The dual-band ceiling access point with support for Wi-Fi 6 (802.11ax) together with MU-MIMO technology provides a top-notch dual-band connection with a total speed of 5378 Mbps at a speed of 574 Mbps on the 2.4 GHz band and 4804 Mbps on the 5 GHz band.

The access point supports both 802.3at PoE+ and power supply with the supplied DC 12 V adapter. The elegant appearance and simple mounting for easy wall or ceiling mounting make deployment easy and flexible.

•

• Ultra-fast Wi-Fi 6 (AX5400): 5378 Mbps at 574 Mbps on the 2.4 GHz band and 4804 Mbps on the 5 GHz band.

• Highly efficient Wi-Fi 6: More connected devices can benefit from faster connections.

• Centralized cloud management: The Omada SDN system manages the entire network locally or from the cloud via a web user interface or the Omada app.

• 160 MHz channel: With the HE160 channel, you can double the peak data volume when transmitting in a single data stream.

• Seamless roaming: Video streams and voice calls are not affected as the user moves between access points.

• Omada Mesh: Enables wireless connectivity between access points for greater range and flexible deployment.

• PoE Support: Supports Power over Ethernet (PoE+ 802.3at) for flexible deployment and installation.

• 2.5G Ethernet: The access point is equipped with a 2.5Gb/s RJ-45 port for increased throughput.


BASIC SPECIFICATIONS

Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax

Data transfer rate: 2.4 GHz - 574 Mbit/s, 5 GHz - 4804 Mbit/s

Antenna: 2x 4 dBi + 4x 5 dBi integrated antenna

Ports: 1x 2.5G RJ-45

Frequency band: 2.4GHz, 5GHz

Security: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X support

PoE support: yes, 802.3at

Dimensions: 243 x 243 x 64 mm
