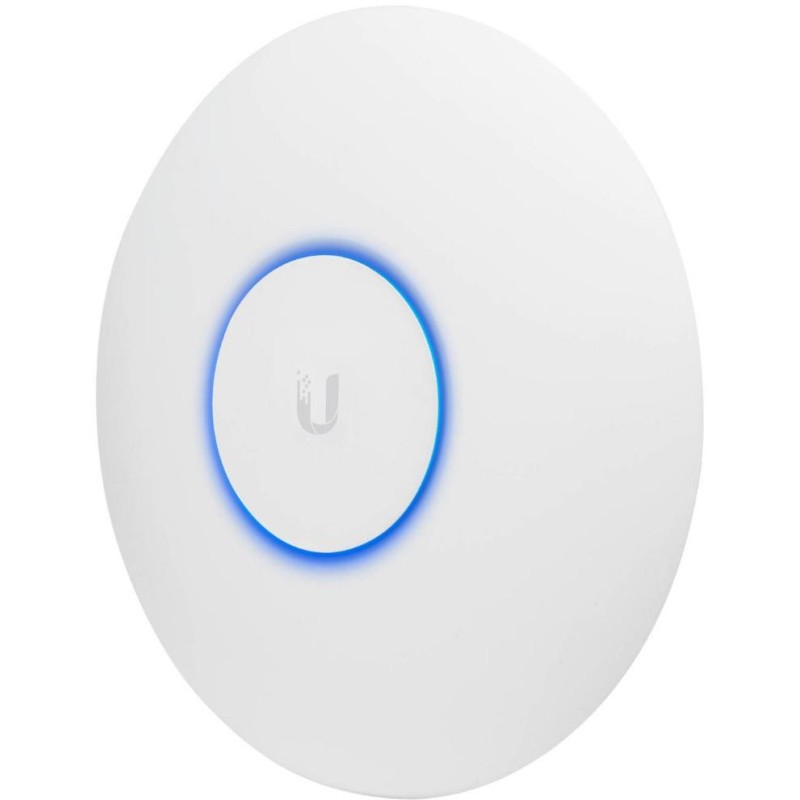

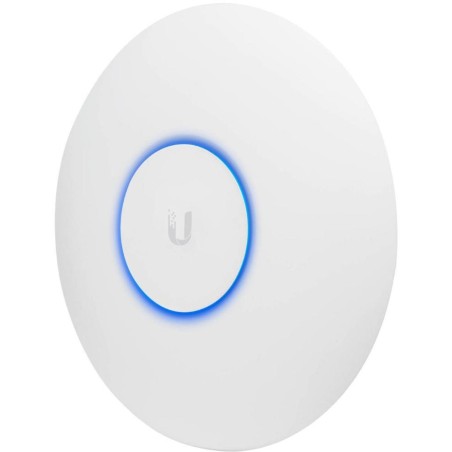

Ubiquiti UniFi AP AC PRO
The UniFi AC-PRO (UAP-AC-PRO) is a Wi-Fi AP with support for both 2.4 and 5 GHz frequency bands and a transfer rate of up to 1,750 Mbps. The advantage is high throughput and support for 802.3af/at PoE power supply. Ideal for offices, restaurants, schools or as a home AP.
UniFi AC PRO is a beautifully designed indoor hotspot solution using the 802.11a/b/g/n/ac standard. It is equipped with a 3×3 MIMO antenna system in the form of two integrated 3 dBi antennas (2.4 GHz and 5 GHz).
The advantage is the durable design even for outdoor installations (Caution: It is not intended for open space. Installation is only possible in a protected environment, for example in a suspended ceiling, under a roof, etc.).
The UniFi AC PRO unit has a second Gbit RJ45 port that does not support PoE Out, but can serve as a connectivity bridge for other devices.
UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .
Other benefits:
- Common SSID or multiple SSIDs with different types of security
- Speed limiting by SSID
- Hotspot
- Guest account
- Billing system - use of an external server, definition of vouchers, connection with the payment portal
- Load Balance – switching clients to less busy UniFi
- Spectral analysis
- VLAN support
The unit supports active PoE 802.3af/at and passive PoE 48 V power supply.
The package includes a Gbit PoE injector 48 V / 0.5 A.
The UniFi AC PRO model meets all requirements for use in the European Commission's WiFi4EU project . See WFA Certification in the documents below the product description.
BASIC SPECIFICATIONS
Standard: 802.11 a/b/g/n/ac
Antenna: integrated dual-band 3 dBi antenna
Operating frequency: 2.4 GHz/ 5 GHz
Data transfer rate 2.4/5 GHz: 450/1300 Mbps
PoE: 48V passive PoE
Ports : 2× 10/100/1000 Ethernet
Dimensions: 196.7 × 196.7 × 35 mm
