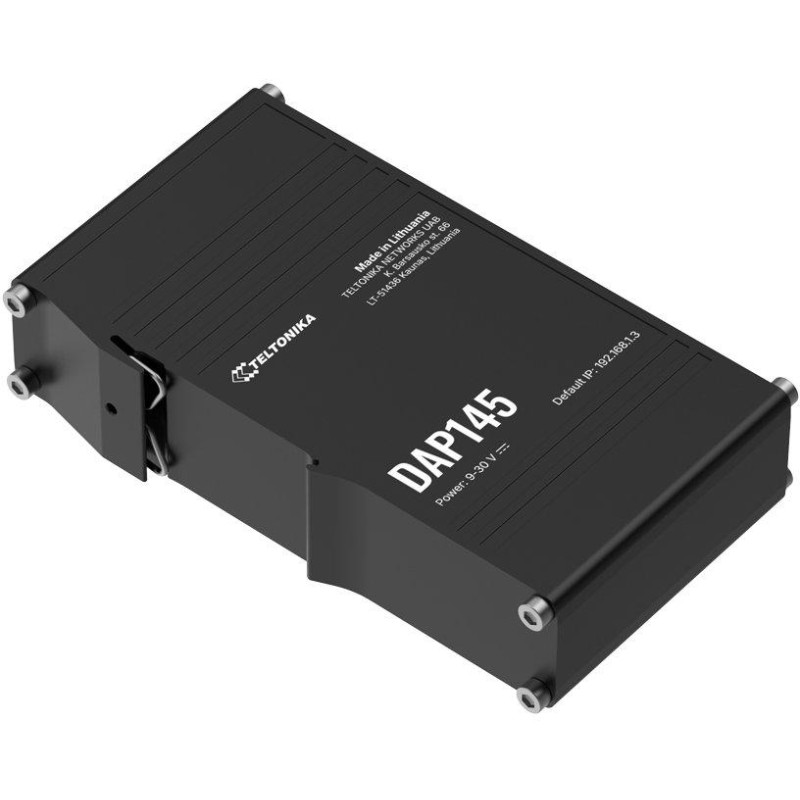

Teltonika DAP145 industrial wireless access point, WiFi 4, Mesh (802.11s), serial RS485, 2x LAN 10/100,

Industrial Wi-Fi access point with RS485 communication for demanding industrial applications.

DAP145 is a specialized industrial wireless access point designed for power, engineering and system integrators. The device enables wired industrial devices to connect to modern IP networks without extensive cabling . It operates as an access point or client in STA/Mesh/Fast roaming modes and provides direct serial connectivity via a native RS485 port .

Advanced RutOS tools like Data to Server and support for industrial protocols facilitate secure data collection to the cloud. Everything is managed remotely via the RMS platform . The compact design with integrated DIN rail mounting and operating temperatures of -40 to +75 °C ensure reliable operation in harsh industrial environments.

Flexible Wi-Fi modes
The device supports Mesh, STA and Fast Roaming modes for coverage expansion, backhaul connectivity and industrial device mobility. Wireless MAC filter and QR code generator make it easy to manage connected devices.

Industrial protocols and cloud integration
Native support for Serial-over-IP, Modbus TCP/RTU, BacNET, OPC UA protocols allows easy integration with existing systems. The Data to Server tool ensures secure data transfer to cloud platforms such as Azure IoT Hub, AWS IoT Core or ThingWorx.

Advanced network features
A complete set of VPN protocols including OpenVPN, IPsec, WireGuard, firewall with attack protection, QoS management, VLAN support, and advanced routing for comprehensive network deployments.

BASIC SPECIFICATIONS

Processor: Mediatek 580 MHz MIPS 24KEc

Memory: 128MB DDR2 RAM, 16MB NOR Flash

Wi-Fi: IEEE 802.11b/g/n, Access Point/Station modes

Serial interface: RS485

Ethernet: 2x RJ45 ports 10/100 Mbps

Power supply: 9-30 VDC, 3-pin industrial connector

Antenna: 1× RP-SMA connector for Wi-Fi

Operating temperature: -40 to +75 °C

Dimensions: 113.1 × 25 × 68.6 mm

Weight: 149.2g
