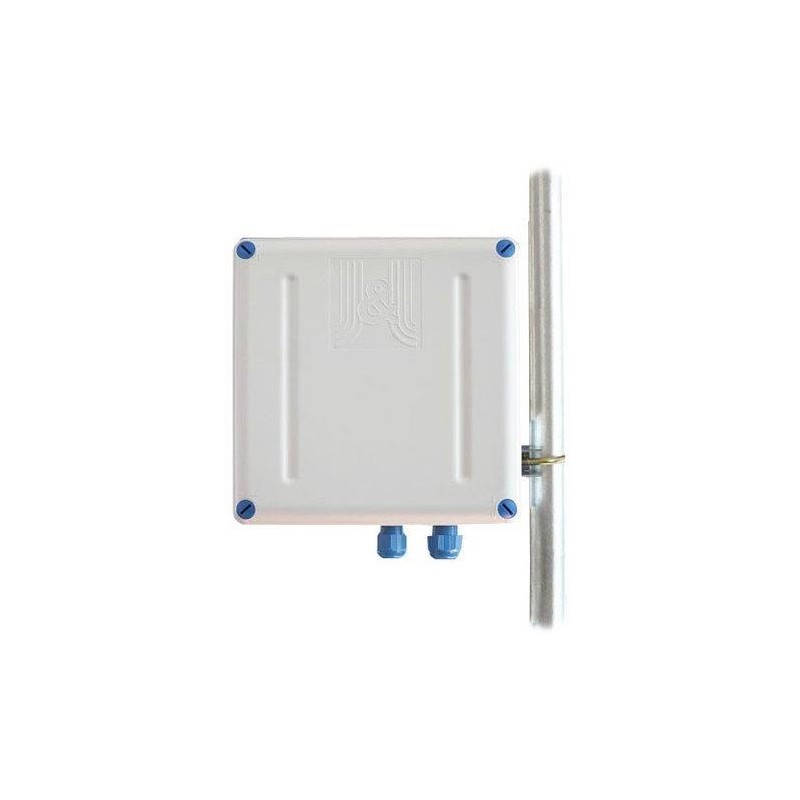

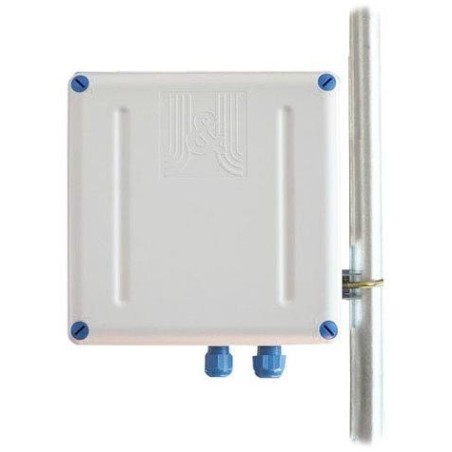

JRC GentleBOX JE-300
GentleBOX is a fully equipped outdoor box for APs, RouterBOARDs and other electronics , which has a unique system of grooves and holes allowing the attachment of most commonly used RouterBoards.
Assembly is easy and does not require drilling, for complete assembly, 1 flat screwdriver, 2 cross screwdrivers (PH1 and PH2) and a size 10 wrench are sufficient. The box is prepared for easy assembly of RB411, RB433, RB800, ALIX2, ALIX3, Compex and Wispstation boards.
The package also includes cable glands, which are secured against twisting thanks to special grooves.
Compatible with all RouterBoard and Alix platforms .
BASIC SPECIFICATIONS
External dimensions: 326 × 326 × 100 mm
Internal dimensions: 309 × 309 × 88.5 mm
Material: UV stabilized ABS plastic, polyamide
Accessories included in the package:
Screws for attaching electronics + plastic spacers that easily slide onto the screw (8 + 8 pcs)
Captive blue MS-1 bayonet “screws” for easy closing of the GentleBOX
Pg11 cable gland for cables with a diameter of 4–10 mm
M20 cable gland for cables with a diameter of 4–10 mm, through which an RJ-45 connector can be inserted
Special holder for masts with a diameter of 32–54 mm
