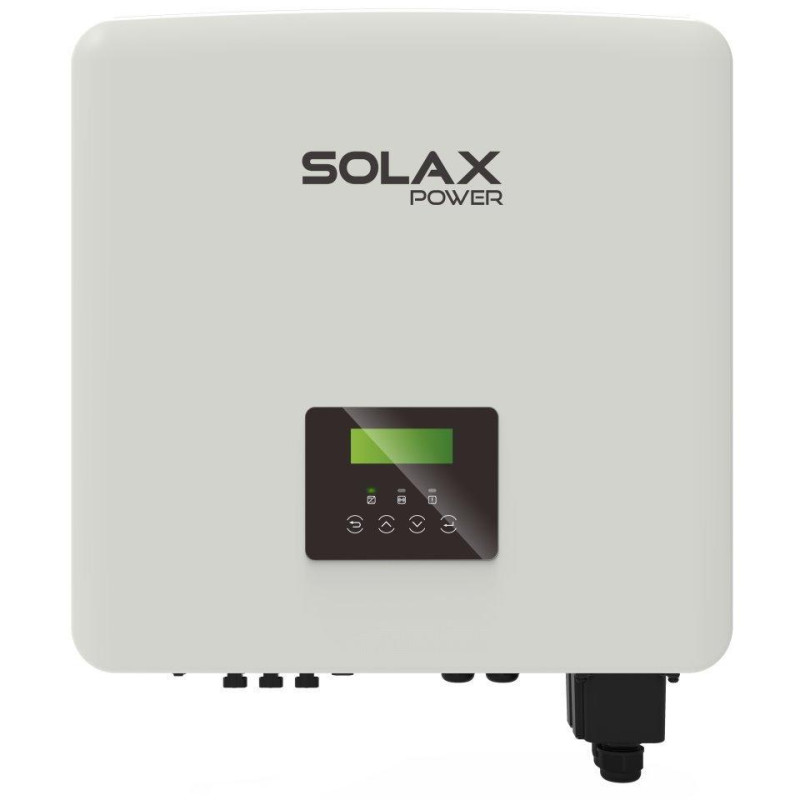

SOLAX X3-HYBRID-15.0-D G4.4 / 15kW / 3-Phase / Hybrid / Asymmetric / 2x MPPT

SOLAX X3-HYBRID-15.0-D G4.4

Three-phase 15kW hybrid asymmetric grid-tie inverter of the fourth generation with two MPP trackers , high efficiency and a wide output voltage range. The professional solution for your solar systems offers above-standard options, including 200% oversizing of the input from strings, high efficiency in charging and discharging batteries and integrated shading detection function. Thanks to the IP65 protection, it can be installed outdoors.

High efficiency

•

• Up to 200% oversized PV power

• Maximum efficiency up to 98%

• Possibility of installing parallel inverters to expand power

• IP65 protection

• Wide temperature tolerance, functional down to -35°C


Economical

•

• Support for high-performance solar panels

• Store excess energy from PV in a battery

• Full battery charge in 1 hour

• Fast charging and discharging


Smart

•

• Support for unbalanced output

• EPS output option

• Online monitoring

• Remote control function


BASIC SPECIFICATIONS

Input

Max. DC input power: 30 kW

Max. DC input voltage: 1000 V

Starting DC input voltage: 200 V

MPPT range: 180-950V

Max. input DC current: 28 A + 16 A

Max. short-circuit current: 35 A + 20 A

Number of MPPTs: 2

Number of strings per MPPT: 2/1

Exit

Rated power of AC output and UPS: 15 kW

Nominal AC mains voltage: 240/415 V, 230/400 V, 220/380 V

AC mains output current: 21.8 A (max. 24.1 A)

Efficiency: 97.7% (98% max)

Protection level: IP65

Dimensions: 503 × 503 × 199 mm

Weight: 30 kg
