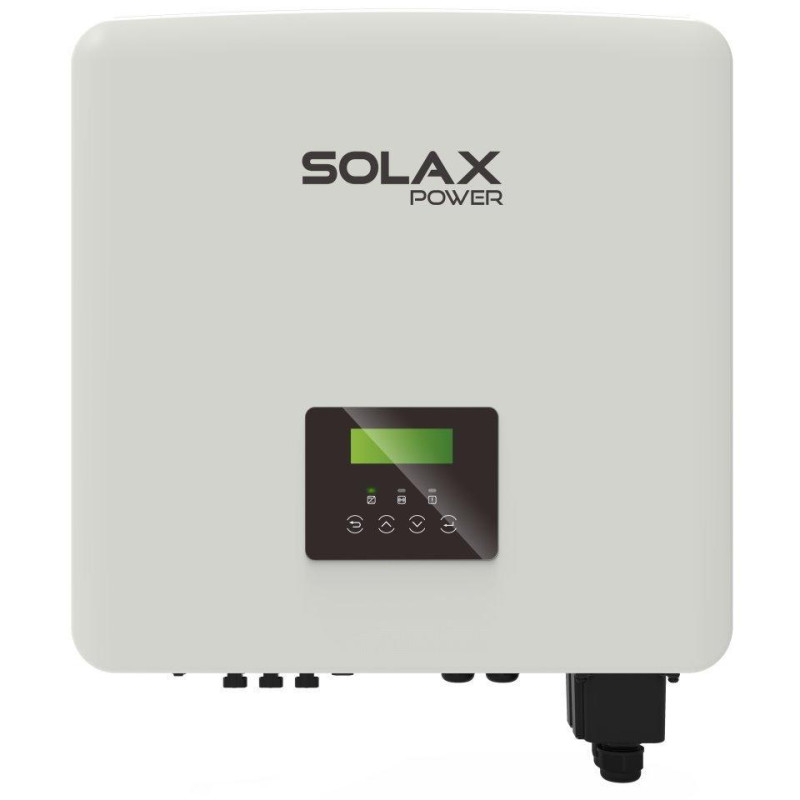

SOLAX X3-HYBRID-8.0-D G4.4 / 8kW / 3-Phase / Hybrid / Asymmetric / 2x MPPT

SOLAX X3-HYBRID-8.0-D G4.4

A three-phase 8kW hybrid asymmetric grid-tie inverter of the fourth generation with two MPP trackers , high efficiency and a wide output voltage range. The professional solution for your solar systems offers above-standard options, including 200% oversizing of the input from the strings, high efficiency in charging and discharging batteries and integrated shading detection function. Thanks to the IP65 protection, it can be installed outdoors.

High efficiency

•

• Up to 200% oversized PV power

• Maximum efficiency up to 98%

• Possibility of installing parallel inverters to expand power

• IP65 protection

• Wide temperature tolerance, functional down to -35°C


Economical

•

• Support for high-performance solar panels

• Store excess energy from PV in a battery

• Full battery charge in 1 hour

• Fast charging and discharging


Smart

•

• Support for unbalanced output

• EPS output option

• Online monitoring

• Remote control function


BASIC SPECIFICATIONS

Input

Max. DC input power: 16 kW

Max. DC input voltage: 1000 V

Starting DC input voltage: 200 V

MPPT range: 180-950V

Max. input DC current: 28 A + 16 A

Max. short-circuit current: 35 A + 20 A

Number of MPPTs: 2

Number of strings per MPPT: 2/1

Exit

Rated power of AC output and UPS: 8 kW

Nominal AC mains voltage: 240/415 V, 230/400 V, 220/380 V

AC mains output current: 11.6 A (max. 12.9 A)

Efficiency: 97.7% (98% max)

Protection level: IP65

Dimensions: 503 × 503 × 199 mm

Weight: 30 kg
