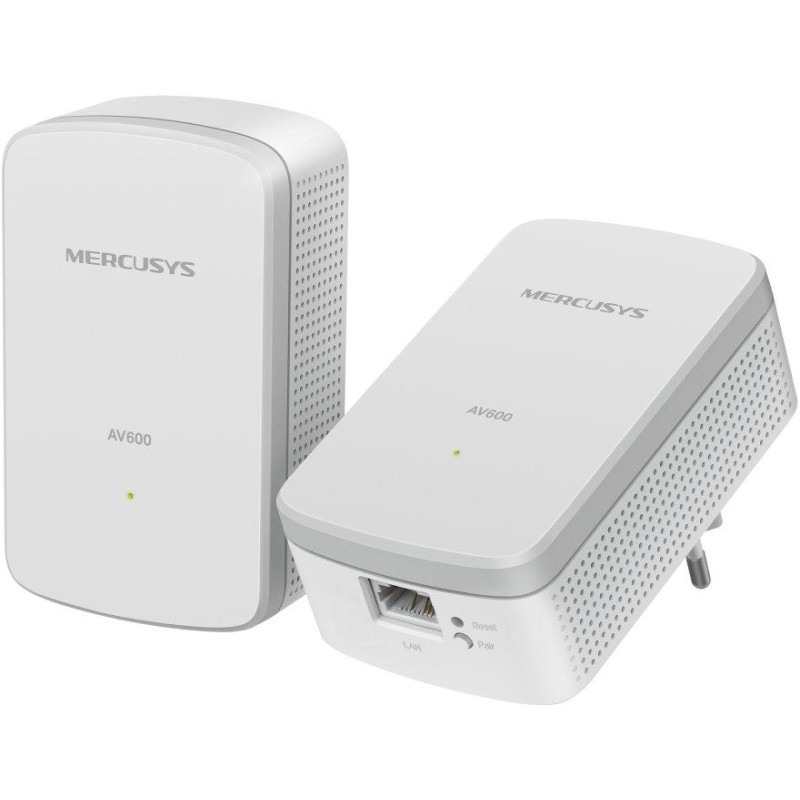

Mercusys MP300 KIT AV600 Powerline Starter KIT, 1x LAN, 2pcs in package

Powerline adapters for transmitting internet connection over electrical network with speeds up to 600 Mbps.

The Mercusys MP300 KIT includes two powerline adapters that use the existing electrical installation in the home to transmit network data. HomePlug AV2 technology ensures a stable and fast connection with a transfer rate of up to 600 Mbps over a distance of up to 300 meters over electrical wiring. The solution is ideal for places where the Wi-Fi signal does not reach or is interfered with by obstacles.

Each adapter is equipped with one 10/100 Mbps Ethernet port for connecting computers, game consoles, IPTV or other network devices. Installation is extremely simple - just connect one adapter to your router and the other to a power outlet where you need an Internet connection. The adapters automatically enter power-saving mode , which reduces consumption by up to 85% when idle.

Easy pairing and security
The Pair button on each adapter allows for quick and secure device pairing. Communication is protected by 128-bit AES encryption, ensuring secure data transmission over the power line.

Ecological operation
The adapters automatically detect when connected devices are idle and switch to power saving mode, significantly reducing power consumption. This eco-friendly approach saves operating costs and protects the environment.

Package contents
The package includes two powerline adapters, a 2-meter RJ45 Ethernet cable, and a brief installation guide for quick setup.

BASIC SPECIFICATIONS

Standard: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u

Transfer engravingSpeed: up to 600 Mbps

Range: up to 300 meters via electrical network

Ethernet port: 1× 10/100 Mb/s (RJ45)

Modulation: OFDM (PLC)

Security: 128-bit AES encryption

Power consumption: maximum 3.12 W, typical 2.34 W, standby 0.71 W (230 V/50 Hz)

Operating temperature: 0 to +40 °C

Dimensions: 101 × 60 × 36 mm

Certification: CE, RoHS
