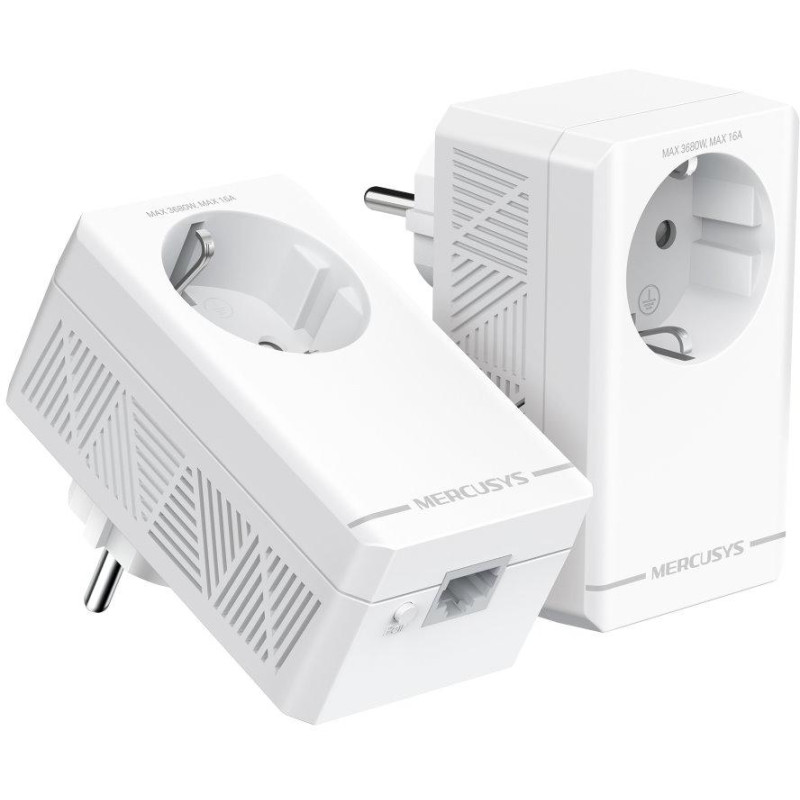

Mercusys MP500P KIT AV1000 Gigabit Powerline Starter KIT, 1x GLAN, pass-through socket, 2pcs in package

Powerline adapters for expanding your home network over existing electrical wiring with a transfer speed of up to 1000 Mbps.

The Mercusys MP500P KIT includes two powerline adapters using HomePlug AV2 technology, which allows data transfer at speeds of up to 1000 Mbps over distances of up to 300 meters over electrical wiring. Each adapter is equipped with a gigabit Ethernet port for connecting devices requiring a stable and fast Internet connection, such as computers, game consoles or IPTV.

A practical pass-through socket with a current load of up to 16 A allows you to continue using the electrical socket for other appliances. Installation is extremely simple - just plug one adapter into the router, the other into the socket where you need an internet connection, and press pairing. The network can be easily expanded by adding other compatible powerline adapters.

Installation and pairing
Connect the first MP500P adapter to your router using the included Ethernet cable and plug it into a power outlet. Plug the second adapter into a power outlet in the room where you need internet access. Press the “Pair” button on both adapters to establish a secure connection. Your network is ready to use immediately.

Package contents
The package includes 2 MP500P powerline adapters, 2 Ethernet cables and a quick installation guide. The adapters are CE and RoHS certified.

BASIC SPECIFICATIONS

Standards: HomePlug AV2, HomePlug AV, IEEE 802.3, IEEE 802.3u

Transfer speed: up to 1000 Mbps

Range: up to 300 m along electrical lines

Ethernet port: 1x gigabit RJ45

Encryption: AES 128-bit

Modulation: OFDM (PLC)

Pass-through socket: up to 16 A

Consumption: max. 2.87 W, typical 2.35 W, standby 0.64 W (220 V/50 Hz)

Operating temperature: 0 to +40 °C

Dimensions: 58 × 42 × 95 mm

Package contents: 2× MP500P adapter, 2× Ethernet cable, installation guide
