PremiumCord HDMI KVM extender 4K and FULL HD 1080p at 70m with USB transmission

Professional HDMI KVM extender allowing transmission of 4K@30Hz signal up to 40 meters or Full HD 1080p signal up to 70 meters using a standard network cable.

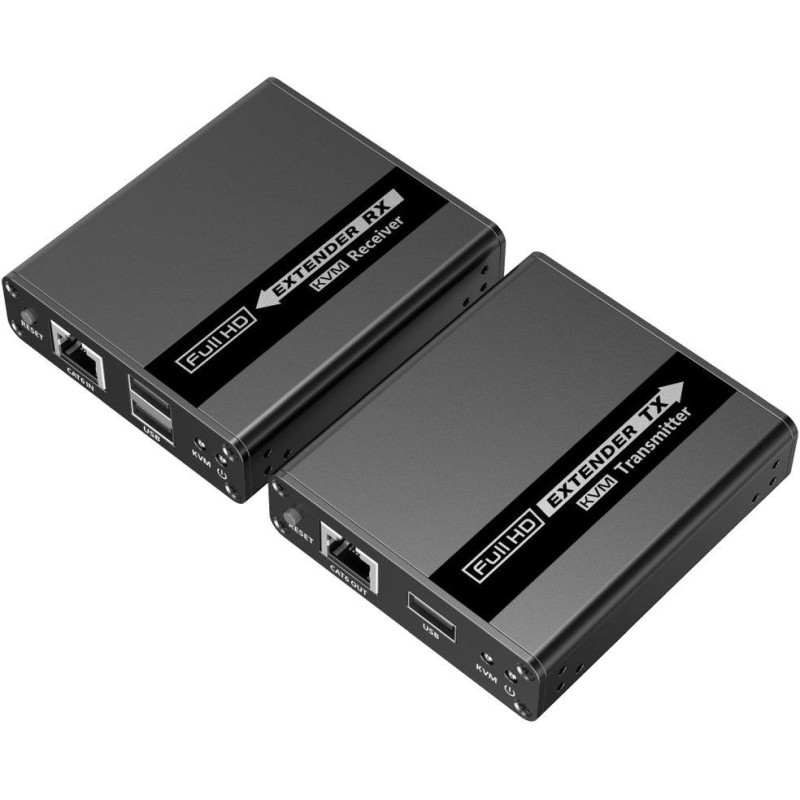

This powerful HDMI extender consists of a transmitter and receiver, which are connected via a common Cat.6/6A/7 network cable. The device not only allows the transmission of high-quality HDMI images without delay and compression, but also the connection of USB 1.1 peripherals such as keyboards, mice or other USB devices at the far end.

The transmitter is equipped with an HDMI output for a local monitor , which allows you to watch the same image at the source location. With support for HDCP 2.2 and HDR10 , the extender ensures compatibility with modern content sources and provides excellent image quality.

Wide resolution support

The extender supports a wide range of resolutions including 800×600, 1024×768, 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, as well as standard video formats such as 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, and 4K@30Hz.

Flexible connectivity

The transmitter is equipped with an HDMI input for connecting a signal source, an HDMI output for a local monitor, a USB input for connecting to a computer and an RJ45 connector for connecting to the receiver. The receiver offers an HDMI output for a remote monitor, two USB outputs for peripherals, a 3.5mm audio output and an RJ45 connector for connecting to the transmitter.

Complete solution in a package

The package contains everything you need for immediate use: transmitter, receiver, two 5V power adapters, USB cable AA (male-male) for connecting the transmitter to a computer, and a user manual. To connect the transmitterIt is necessary to use a high-quality Cat.6/6A/7 network cable (not included) between the transmitter and receiver.

BASIC SPECIFICATIONS

Device type: HDMI KVM extender (transmitter + receiver)

Maximum resolution: 4K at 30Hz (3840 × 2160) up to 40 m, 1080p at 60 Hz up to 70 m

Supported standards: HDMI 1.4, HDCP 2.2, HDR10, YUV 4:4:4

Supported audio formats: PCM, LPCM, DTS HD, DTS Audio

Transmitter connectors: HDMI input, HDMI output (loop), USB input, RJ45, power connector

Receiver connectors: HDMI output, 2× USB output, RJ45, 3.5mm audio output, power connector

Patch cable: Cat.6/6A/7 (up to 70 m), Cat.5E (up to 40 m)

Dimensions (W × D × H): 75 × 80 × 18 mm

Operating temperature: -20 to +60 °C

Storage temperature: -30 to +70 °C

Relative humidity: 0 to 90% (non-condensing)

Package contents: transmitter, receiver, 2× 5V power adapter, USB cable AA, user manual
