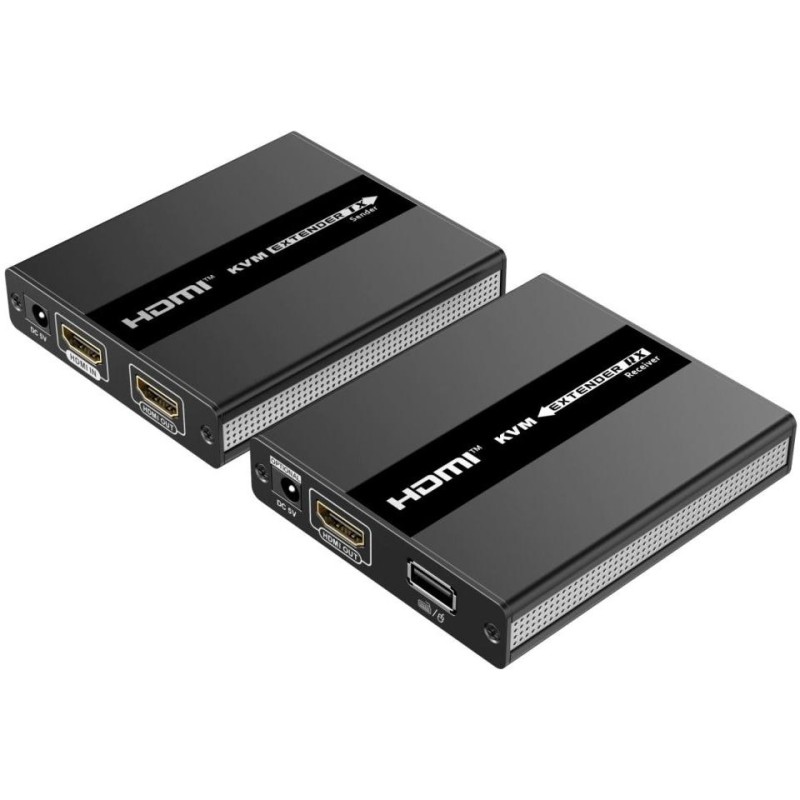

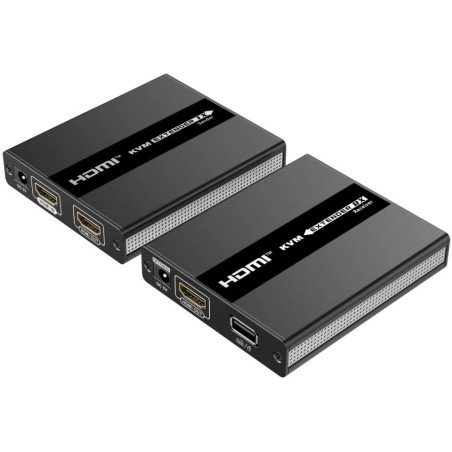

PremiumCord HDMI KVM extender with USB up to 60m over a single Cat5/6 cable, no delay

PremiumCord HDMI KVM extender with USB

The device allows you to transmit HDMI Full HD 1080p signals and USB over a distance of up to 60 m without delay via a single network cable.

•

• The KVM extender (Keyboard, Video and Mouse) allows you to transmit a signal together over a longer distance and remotely control a computer or server.

• Supports Full HD 1080p transmission up to 60 m (when using high-quality UTP Cat6 cable with AWG23 copper conductors).

• For connection, we recommend a high-quality UTP cable of category Cat5e/6/7 (preferably AWG23, does not need to be shielded).

• The transmitter and receiver need to be connected with a high-quality Cat6/Cat5e cable. Both units have an RJ-45 connection connector.

• The transmitter has one HDMI input connector and one local HDMI output. The receiver has one HDMI output for a remote monitor.

• The extender also transmits USB, the transmitter has one USB for connecting to a computer. The receiver has two USB connectors for connecting, for example, a mouse and keyboard.

• The transmitter and receiver are powered by the included power adapters. This extender allows power supply from only one side with one adapter, as stated in the manual.


•

• Supported resolutions: 720 x 576 @ 50 Hz, 720 x 480 @ 60 Hz, 1280 x 720 @ 60 Hz, 1920 x 1080 @ 60 Hz, 640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz, 1024 x 768 @ 60 Hz, 1280 x 800 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1440 x 900 @ 60 Hz, 1680 x 1050 @ 60 Hz

• Transmission data rate: 10.2 Gbps

• HDMI 1.3 compatible

• Supports HDCP 1.4

• Maximum range: 60 m when using Cat6 cable AWG23

• Maximum range: 50 m when using Cat5 cable AWG24

• Input HDMI cable max. 8 m when using HDMI cable with AWG24 wires

• HDMI output cable max. 8 m when using HDMI cable with AWG24 conductors


Package: 1x transmitter, 1x receiver, manual, 1x DC 5 V (2 A) power adapter

BASIC SPECIFICATIONS

Transmission technology: HDMI 1.3, HDCP 1.4

Maximum transmission distance: up to 60 m when using Cat6 cable (AWG23)

Power supply: external DC 5V (2A) adapter

Operating temperature: 0 to +60 °C

Transmitter:

Interface: 1x HDMI input, 1x HDMI output, 1x RJ-45, 1x USB 2.0

Dimensions: 91 x 79 x 18 mm

Weight: 210g

Receiver:

Interface: 1x HDMI output, 1x RJ-45, 2x USB 2.0

Dimensions: 91 x 79 x 18 mm

Weight: 210g
