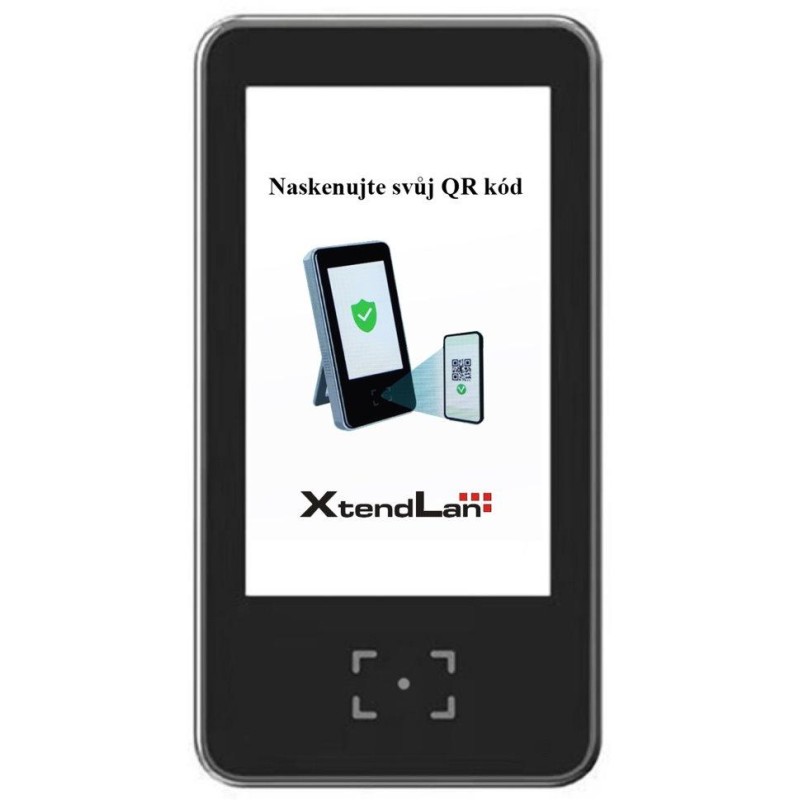

XtendLan self-service QR code reader (Covid Green Pass, etc.), online verification, WiFi and LAN, relay output

XtendLan XL-QRDCC-601 QR reader Covid 19 codes (certificates). The reader for verification needs to be continuously (but not constantly) connected to the Internet, therefore it is equipped with a wireless Wi-Fi connection and a LAN network connection. Self-service and fully automated scanning of a valid EU Covid certificate (so-called GreenPass or CovidPass). It verifies QR codes from all EU countries, reads codes from mobile phones and printed on paper as well. You can easily include it in your access system, as it is equipped with a switching relay. This can always switch if the certificate is valid (green mode) or, conversely, invalid (red mode). Configuration is absolutely easy and in most cases it works right after the first switch-on. It announces the certificate validity message in Czech. The reader's voice notification can of course also be turned off. The device has its own simple web management (it shows the assigned IP address in the status bar and it is a matter of minutes to fully operate it). Reading distance approx. 20 cm. Instant reading without delay with display of the result (valid/invalid). Parameters that can be set via the reader's web management: Accepted certificates: vaccination, past illness, PCR test, antigen test Custom screen: just prepare a JPG image with a resolution of 480 x 700 pixels Displayed data: you can choose what should or should not be displayed after reading the QR code - name and date of birth Voice message and volume Display time of the result of the last QR code reading (1 to 15 seconds) Output relay operating mode (green mode switches when the certificate is valid, red mode switches when it is invalid - the relay has both NC and NO outputs) IP address (DHCP or fixed), default gateway The device is lightweight, it can be easily operated standing on a table, mounted on a wall or on a light tripod. Package contents: reader, power adapter (DC 5 V), USB-A power adapter, metal holder, wall plugs with screws BASIC SPECIFICATIONS Display: 5" diagonal, 800 x 480 resolution Data connection: Wi-Fi 2.4 GHz 802.11b/g/n (built-in antenna), Ethernet 10/100 Base-TX (RJ-45 connector, waterproof) Audio: yes, built-in speaker Camera: CMOS sensor, 640 x 480 px (reading angle - horizontal 68°, vertical 51°) Compatible symbols: 2D symbols of PDF417, Data Matrix, QR and Micro QR type Power supply: external DC 5 V adapter (max. 2 A) Operating temperature: -10 to +60 °C, relative humidity up to 95% (no condensation) Connectors (on the outlet length approx. 30 cm): 1x power 3.4/1.4 mm, 1x Ethernet RJ-45, 1x 3pin screw connector (output relay), 1x reset button in a waterproof case Color: black - gray Weight: 360 g Dimensions: 165 x 87 x 21 mm Manual Other download
