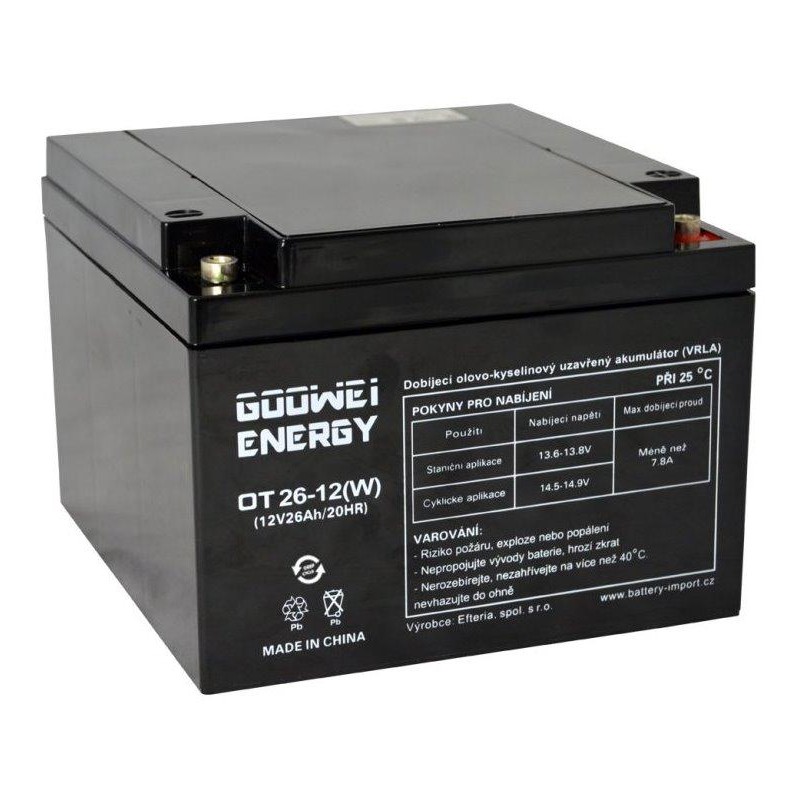

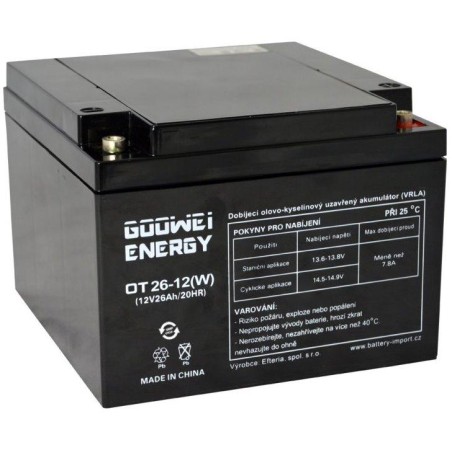

GOOWEI ENERGY OTL26-12
Lead-acid 12 V (26 Ah) battery in VRLA GEL design designed for deep discharge and cyclic stress. It is therefore suitable for backup systems .
Traction gel batteries of the OTL series. These are sealed lead-acid batteries in the VRLA design. This is a design in which the internal pressure is regulated by valves (VRLA - Valve Regulated Lead Acid = valve-controlled lead-acid batteries). GEL technology means that the battery does not contain electrolyte in a liquid state . The electrolyte is solidified in a hybrid gel (combination with AGM), and is therefore firmly bound in the interior of the battery cells, which eliminates its leakage . The extra-strong cell grid ensures high cyclic resistance of the battery.
The battery can also be used for applications in "standby" mode, where the batteries are under constant power and serve as a backup source in the event of a power outage. They are particularly suitable where there are frequent outages or where the batteries are deeply discharged.
Features:
- Hybrid GEL = electrolyte is bound in a hybrid gel (combination with AGM)
- Higher maximum discharge currents
- Absolutely maintenance-free (in terms of water refilling)
- Much longer cycle life than a conventional flooded battery
- In cyclic operation, charging voltage 14.5 – 14.9 V at a temperature of 25 °C (cyclic applications)
- When operating the backup power supply, charging voltage 13.6 – 13.8 V at a temperature of 25 °C (station application)
- Deep discharge resistance (better withstands deep discharge)
- Vibration-proof
- Leak-Proof block - the battery can operate continuously at an angle of up to 90°
- This is not a dangerous product in the FAA and IATA categories (batteries can therefore be transported by air and sea)
- Lifespan: 800 cycles (at 50% depth of discharge)
- Connector type: M4 screw + nut (can use cable for M6 connector)
The batteries are primarily intended for the following applications:
- Uninterruptible power supplies (UPS)
- Electronic fire protection systems (EPS)
- Electronic security systems (ESS)
- Telecommunications equipment
- Emergency lighting
- Powering electric motors and other traction EV applications
- Back-up of circulation pumps and boilers
Cyclic endurance depending on depth of discharge
Battery maintenance
To achieve optimal battery life with frequent cyclic operation, it is necessary to respect the maximum permitted depth of discharge of 80% DoD (Depth of Discharge) specified by the ČSN EN 61044 standard.
When storing batteries for a longer period of time, it is necessary to ensure their continuous charging. At a storage temperature of 25 °C, charge every 6 months, if the temperature is higher, charge more often.
Operating temperature range: charging -20 to +50 °C, discharging -20 to +50 °C, storage -10 to +40 °C. Prolonged exposure of batteries to temperature extremes shortens their lifespan.
You can find out where and how to use this battery inz/Technical-support/Batteries-and-charging/Chargers-and-charging/How-to-back-up-power.html"> technical support .
These DC connection cables can be used to connect a battery to another battery or inverter.
BASIC SPECIFICATIONS
Capacity: 26Ah
Voltage: 12V
Maximum discharge current: 300 A
Battery technology: VRLA-GEL
Contact type: M4 screw (T0)
Status: charged
Dimensions: 175 x 165 x 125 mm
Weight: 8.05 kg
Datasheet:
Goowei OT and OTL series - datasheet
