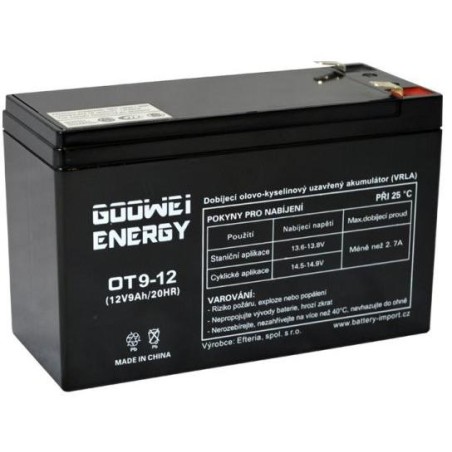

GOOWEI ENERGY OT9-12
Backup 12 V (9 Ah) lead-acid battery in VRLA (AGM) design suitable for applications without frequent cycling with a reliable backup source.
This is a design in which the internal pressure is regulated by valves (VRLA - valve regulated lead acid = valve-controlled lead-acid batteries ). The advantages of this design, together with AGM technology (Absorbed Glass Mat - the battery contains electrolyte in a liquid state, but it is absorbed into fiberglass microfibers , or so-called glass wool, which means it is firmly bound in the interior of the battery cells, and its leakage is practically excluded ) are mainly the following:
- Higher maximum discharge currents
- Absolutely maintenance-free (in terms of water refilling)
- Longer lifespan
- Shockproof
- Leakproof – sealed – spill-proof
- Connector type: Faston 6.3 mm (F2)
Goowei OT series batteries with an optimal lifespan of 4-6 years are designed primarily for the following applications:
- Uninterruptible power supplies (UPS)
- Electronic fire protection systems (EPS)
- Electronic security systems (ESS)
- Telecommunications equipment
- Emergency lighting
- Back-up of circulation pumps and boilers
Cyclic endurance depending on depth of discharge
Battery maintenance
To achieve optimal battery life with frequent cyclic operation, it is necessary to respect the maximum permitted depth of discharge of 80% specified by the ČSN EN 61044 standard.
When storing batteries for a longer period of time, it is necessary to ensure their continuous charging. At a storage temperature of 25 °C, charge every 6 months, if the temperature is higher, charge more often.
Operating temperature range: charging -15 to +40 °C, discharging -15 to +50 °C, storage -10 to +40 °C. Prolonged exposure of batteries to temperature extremes shortens their lifespan.
You can find out where and how to use this battery from technical support .
BASIC SPECIFICATIONS
Capacity: 9Ah
Voltage: 12V
Battery technology: VRLA - AGM
Contact type: Faston 6.3 mm (F2)
Status: charged
Dimensions: 151 x 94 x 66 mm
Weight: 2.56 kg
Compatibility:
Eurocase: EA200PLUS 650VA, EA200PLUS 850VA, EA200LED 750VA, EA200LED 1200VA, EA200N 1000VA, EA200N 1500VA, EA200N 2000VA
APC: BE700-CP, BE700-FR, BE700G-CP, BE700G-FR, BK650EI, BR1200G-FR, BR1200GI, BR1500G-FR, BR1500GI, SMX1500RMI2U, SMX1500RMI2UNC, DLA1500RMI2U, SU1400R2IBX120, SU1400RM2U, SU1400RMI2U, SUA1500RMI2U, RBC17, RBC124, RBC115, RBC24
AEG: Protect A.700, Protect A. 1400, Protect B. 1000, Battery module Protect B. 2000, Protect B. PRO 1000, Protect B. PRO 1800 BP, Protect B. PRO 3000, PROTECT C. 10000, Battery module PROTECT C. 10000, Protect D. 1000, Protect D. 1500, Protect D. 2000, Protect D. 3000, Protect D. 6000, Protect D. 10000, Protect D. 1000 BP, Protect D. 1500 BP, Protect D. 2030 BP, Protect D. 6000 BP, Protect D. 10000 BP, PROTECT 1.100 BP
EATON-Powerware: Protection Station 800, Ellipse ECO 800, Ellipse ECO 1600, 5115 / 500, 5115 / 1000, 5115 / 1400, Ellipse MAX 1500, Evolution 650, Evolution 1150, Evolution 1550, 5130 / 1750, 5130 / 3000, 5130 / EBM 48V, 5130 / EBM 72V, 5PX / 2000, 5PX / 2200, 5PX / 3000, 5PX EBM 48V, 5PX EBM 72V, EX 1500, EX 1500 RT, EX EXB, EX EXB RT, EX 3000, EX EXB (2200/3000)
