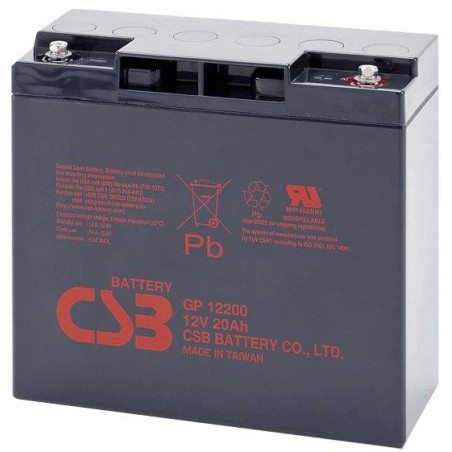

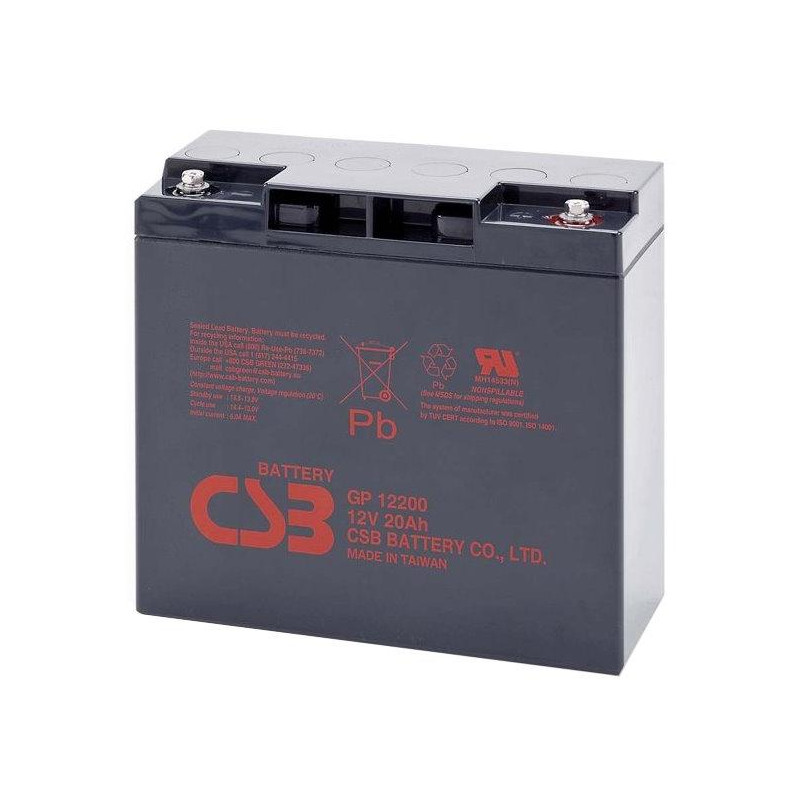

CSB GP12200
Backup lead-acid battery (12 V, capacity 20 Ah) in VRLA (AGM) design.
It is a design in which the internal pressure is regulated by valves (VRLA - Valve Regulated Lead Acid). The advantages of this VRLA/AGM design are mainly the following:
- Higher maximum discharge currents
- Absolutely maintenance-free (in terms of water refilling)
- Longer lifespan
- Shockproof
- Leakproof – sealed/unbreakable
- Connector type: recessed thread for M5 screw
AGM (Absorbed Glass Mat) technology:
Although the battery contains electrolyte in a liquid state, it is "soaked" in fiberglass microfibers , or so-called glass wool, and is thus firmly bound in the interior of the battery cells ( its leakage is practically eliminated ).
GP model series - optimal service life of 4 to 6 years
Application: Mainly backup power supplies and high-load devices. Very high quality battery. It is designed for applications in the most demanding environments and is suitable for use primarily in backup power supplies (UPS), electronic fire systems (EPS), electronic security systems and telecommunications.
CSB brand products are used by world-renowned computer and office equipment manufacturers such as: POWERWARE, APC, LIBERT, MGE, RIELLO, SICON SOCOMEC, IBM, ASCOM, etc.
The quality of batteries used, for example, in backup power supplies, is ensured by several properties. One of the main ones is the requirement for the same physical properties of individual battery cells, connected in series or series-parallel. If this condition is met, a high service life is guaranteed. CSB batteries meet this condition, and millions of backup power supply users around the world can appreciate this.
BASIC SPECIFICATIONS
Capacity: 20Ah
Voltage: 12V
Battery technology: VRLA/AGM
Contact type: M5
Max charging current: 6 A
Max. discharge current: 230 A (5 seconds)
Status: charged
Dimensions: 181 × 167 × 76 mm
Weight: 6.4 kg
