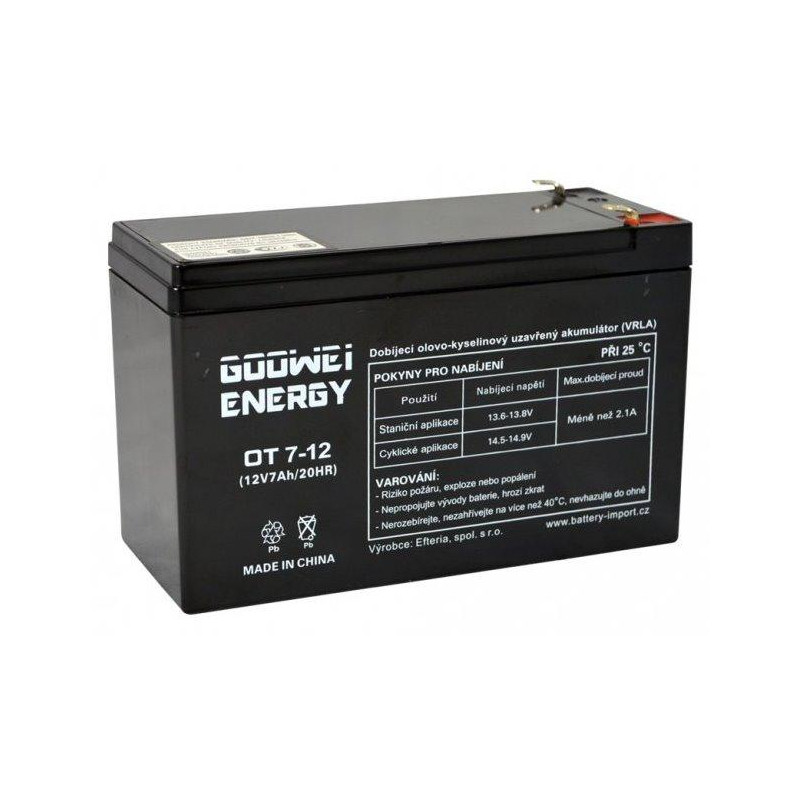

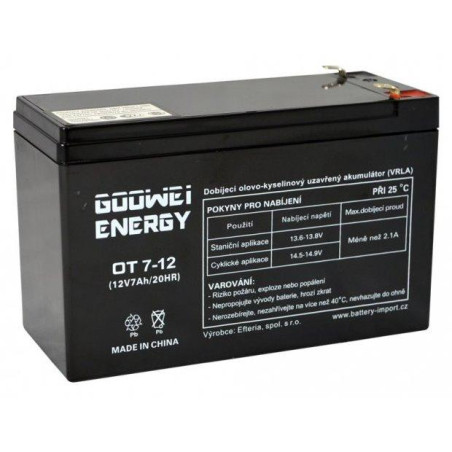

GOOWEI ENERGY OT7-12 F2
Backup 12 V, 7 Ah lead-acid battery in VRLA (AGM) design suitable for applications without frequent cycling with a reliable backup source.
This is a design in which the internal pressure is regulated by valves (VRLA - valve regulated lead acid = valve-controlled lead-acid batteries ). The advantages of this design, together with AGM technology (Absorbed Glass Mat - although the battery contains electrolyte in a liquid state, it is absorbed into fiberglass microfibers , or so-called glass wool, which means it is firmly bound in the interior of the battery cells, and its leakage is practically excluded ). The advantages are mainly these:
- higher maximum discharge currents
- absolutely maintenance-free (in terms of water refilling)
- longer life
- shockproof
- leakproof – closed – spill-proof
- connector type: Faston 6.3 mm (F2)
Goowei OT series batteries, with an optimal lifespan of 4-6 years, are designed primarily for the following applications:
- uninterruptible power supplies (UPS)
- electronic fire protection systems (EPS)
- electronic security systems (ESS)
- telecommunications equipment
- emergency lighting
- backup of circulation pumps and boilers
Cyclic endurance depending on depth of discharge
Battery maintenance
To achieve optimal battery life with frequent cyclic operation, it is necessary to respect the maximum permitted depth of discharge of 80% specified by the ČSN EN 61044 standard.
When storing batteries for a longer period of time, it is necessary to ensure their continuous charging. At a storage temperature of 25 °C, charge every 6 months, if the temperature is higher, charge more often.
Operating temperature range: charging -15 to 40 °C, discharging -15 to 50 °C, storage -10 to 40 °C. Prolonged exposure of batteries to temperature extremes shortens their lifespan.
You can find out where and how to use this battery in technical support .
BASIC SPECIFICATIONS
Capacity: 7Ah
Voltage: 12V
Battery technology: VRLA/AGM
Contact type: Faston 6.3 mm (F2)
Status: charged
Dimensions: 151 x 94 x 65 mm
Weight: 2.25 kg
Compatibility:
Back-UPS 200, Back-UPS BE500R, Back-UPS BE500U, Back-UPS BE550G-CP, Back-UPS BE550R, Back-UPS BK250, Back-UPS BK250B, Back-UPS BK250EC, Back-UPS BK250I, Back-UPS BK280B, Back-UPS BK300, Back-UPS BK300C, Back-UPS BK300X116, Back-UPS BK350, Back-UPS BK400, Back-UPS BK400B, Back-UPS BK500, Back-UPS BK500M, Back-UPS BK500MC, Back-UPS CS 500, Back-UPS ES 550, Back-UPS ES BR500U, Back-UPS PCPER, Back-UPS PCPRO, Back-UPS Pro BP280, Back-UPS Pro BP2801PNP, Back-UPS Pro BP280B, Back-UPS Pro BP280BPNP, Back-UPS For BP280C, Back-UPS For BP280IPNP, Back-UPS For BP280PNP, Back-UPS For BP280S, Back-UPS For BP280SX116, Back-UPS For BP350, Back-UPS For BP350U, Back-UPS For BP350UC, Back-UPS For BP420, Back-UPS For BP4201PNP, Back-UPS For BP420C, Back-UPS For BP420IPNP, Back-UPS For BP420PNP, Back-UPS For BP420S, Back-UPS For BP500, Back-UPS For BP500CLR, Back-UPS For BP500U, Back-UPS For BP500UC
600VA UPS Trust
EP 650 SP Fortron, FSP FP 600 Fortron, FSP Nano 600 Fortron, OXXTRON 1000VA UPS Trust, OXXTRON 800VA UPS Trust, Powertron 1000 UPS Trust, PowerWise 2100 Hewlett Packard, PW-4060T 600VA Trust, PW-4065T 650VA Trust, Smart-UPS SC420, Smart-UPS SP500DR, Smart-UPS SU420NET, Smart-UPS SU420VS, Smart-UPS SUVS420, UPS OP700i IBM
Alternative RBC battery pack for APC backup power supplies. These kits always consist only of backup batteries and no accessories are supplied with them. In particular, no cables, connectors or connectors. This is the cheapest option for replacing batteries in APC backup power supplies. Simply remove your original battery pack called RBC from the backup power supply, if the type of APC power supply to which the replacement pack belongs allows it (in some power supplies, the user cannot replace the battery himself, but this service activity must be performed by a specialist). After removing the original battery pack, thoroughly check and record the connection of any cables and connectors, and then disconnect them. Do not get rid of any accessories, they will be used to connect the new set if it includes more than 1 battery. Some types of RBC packs contain batteries that are connected to each other using adhesives, most often thick double-sided adhesive tape is used. You can either replace this tape or use another battery connection system, e.g. Knock the batteries together and wrap the sides with transparent adhesive insulating tape in several layers. This ensures a sufficient connection.
Some RBC models contain only a single battery, which can then be simply removed from the APC backup device and replaced piece by piece.
