XtendLan plastový rozvaděč pro 4 odbočky, 1 kabelový port, vodotěsný, cívka
  • XtendLan plastový rozvaděč pro 4 odbočky, 1 kabelový port, vodotěsný, cívka

XtendLan plastic distribution box for 4 branches, 1 cable port, waterproof, coil

NETXTE2198
XTENDLAN
XtendLan ORSW-104-SCS; Waterproof wall-mounted plastic distribution box. Typically suitable for branching lines or connecting splitters. Cables are attached in screw clamps and the box is closed with a screw....
€16.02
Tax included
€13.24 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
Delivered in 5 days
Quantity
Available
48 Items



Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

XtendLan ORSW-104-SCS

Waterproof wall-mounted plastic distribution box. Typically suitable for branching lines or connecting splitters. Cables are secured in screw clamps and the box is closed with a screw.




  • 1x cable hole
  • 4x output port for connecting terminal pins
  • Position for 4x simplex SC adapter


The distribution box is typically suitable for outdoor installations. It is usually used to terminate lines that are locally branched or connected to PLC splitters. It can also be used for continuous branching of fibers from cable lines or branching of wavelengths using wave filter techniques. The housing has internally hinged layers on which components are installed.



On the front:

- panel for SC adapters, 4 positions

- coil for drop cables, it is assumed to use end lines with cables with a diameter of 2-3 mm

- fastening brackets for the supply cable



On the back of the flip panel:

- positions for placing welds

- winding spool for fibers

- a place for placing splitters and other passive fiber optic components (PLC splitters, color demultiplexers, OADM...)



BASIC SPECIFICATIONS



Number of ports: 1 x cable, 4 x tap


Color: white


Dimensions: 187 x 117 x 40 mm

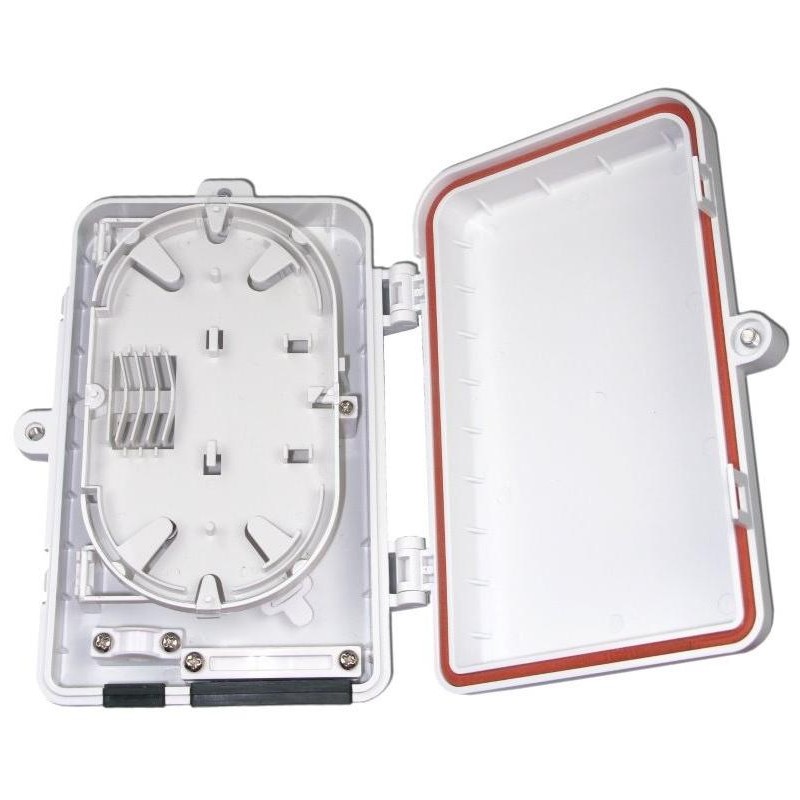

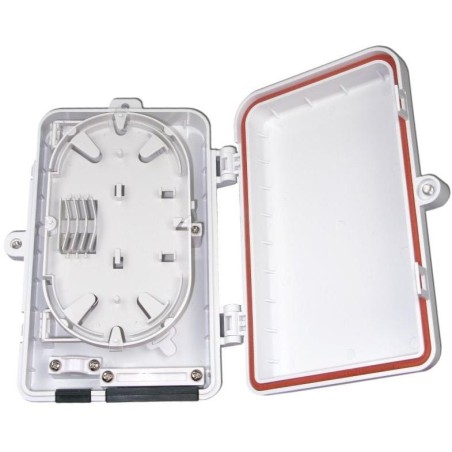

View of the open cassette:



Product Details
XTENDLAN
NETXTE2198
8592457142072
48 Items

Data sheet

Execution
On the wall
Warranty period for registration number (months)
26
Manufacturer
XtendLan
Warranty length (months)
26
Processed
Approved
Outdoor use
Yes
Dropshipment - Alza
Yes
Indoor use
Yes
Warranty option
No
Number of FO ports
1
Termination
SC
Number of branches
4
Zboží určeno pro
Commercial - pro profesionální použití
