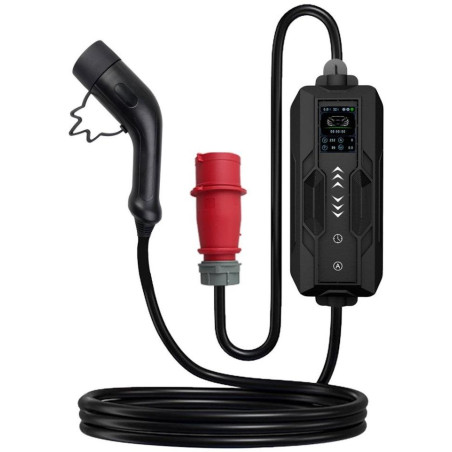

IMMAX NEO LITE travel charging station for electric vehicles EV/PHEV AC Type 2, 11kW, TUYA

Universal charging station with a maximum power of 11 kW for fast charging of electric cars and plug-in hybrids.

This advanced charging station offers flexible connection to both a single-phase 230V network with a power of 3.7 kW and a three-phase 380V network with a power of up to 11 kW . Thanks to the Plug&Play function, charging starts automatically after connecting the vehicle without the need for complex configuration.

The station is equipped with a 5-meter cable with Type 2 connector and CEE plug , including a CEE to Shuko adapter for single-phase connection. Integrated WiFi and Bluetooth allow remote control via the TUYA app with the ability to monitor the charging process in real time.

Advanced security and protection
The charging station is equipped with a comprehensive protection system including overcurrent protection at 110% of the rated current, AC/A+DC6mA leakage protection and ground fault protection. There is also lightning and overheating protection.

Flexible installation and use
Thanks to its compact dimensions and durable construction, the station is suitable for home garages, company parking lots and public charging points. The cable with a cross-section of 5×6mm2 + 1×0.25mm2 ensures safe transmission of high power.

Wide vehicle compatibility
The station supports charging of more than 100 electric car and plug-in hybrid models from leading global manufacturers, including the latest Tesla models, BMW i4, Audi e-tron, Škoda Enyaq iV, Volkswagen ID.4 and many others.

BASIC SPECIFICATIONS

Power: 11 kW (3 phase 380V) / 3.7 kW (1 phase 230V)

Working voltage: 380V–480V AC (3 phases)

Working current: 16A max (3 phases), adjustable 8/10/13/16 A

Connector: type 2 + CEE plug + CEE to Shuko adapter

Cable length: 5 m

Display: 2.8" LCD color

Communication: WiFi, Bluetooth, TUYA app

Resistance: IP67 (Type 2), IP54 (charger), IP44 (CEE)

Operating temperature: -25°C to +55°C

Operating humidity: 5%–95%

Package contents: charging station, CEE to Schuko adapter, instructions
