IMMAX travel charging station for electric cars NSE003

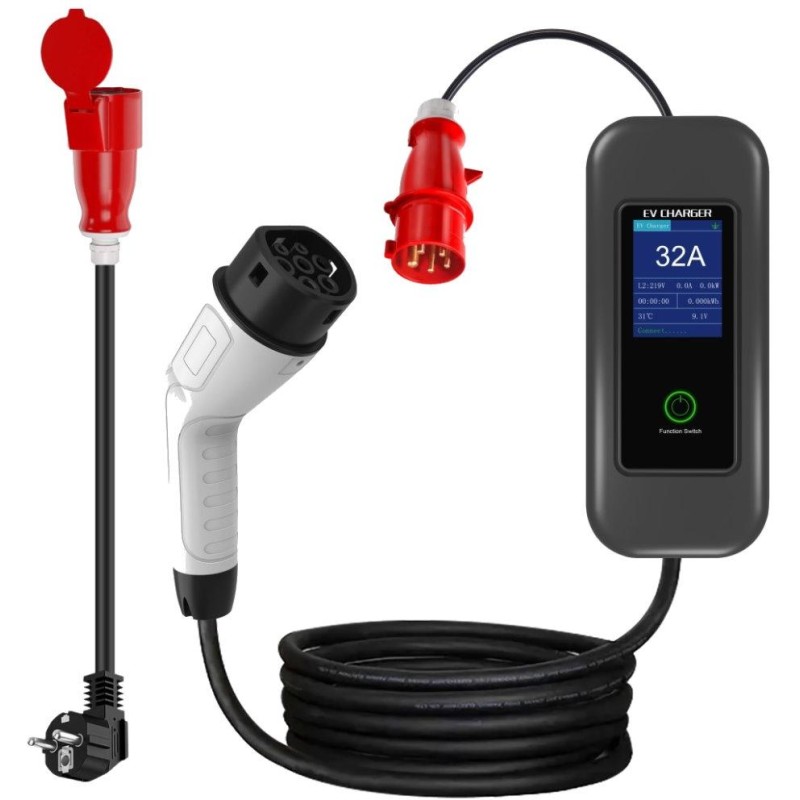

The 22 kW EV/PHEV travel charging station delivers fast and efficient charging, whether you're on the road, at home or in a shopping car park. It is equipped with a cable with a CEE connector on one side and a TYPE-2 plug on the other, which allows compatibility with a wide range of electric cars and plug-in hybrids. Thanks to the Plug & Play function , charging of the vehicle starts automatically when the charger is connected to the vehicle. The compact design, intelligent technology and LED display for displaying temperature, charging time and actual current ensure reliable operation and safe charging. Protection against overvoltage or low voltage, against excessive load (self-recovery), against lightning and against overheating are standard.
Key features:
Power and voltage: The charging station provides a maximum power of 22 kW at a current of 32 A and a voltage of 380 V on a three-phase connection, ensuring fast and reliable charging.
Compatibility: Equipped with CEE and Type 2 connectors and a CEE to Shuko 1 phase adapter, the station is compatible with most electric vehicles on the market.
Cable Length: With a 5-meter charging cable, it offers enough reach for flexible placement and convenient connection.
Smart features: Integrated Wi-Fi allows the charging station to be connected to an app on the TUYA platform, allowing you to remotely monitor and control the charging process.
The package includes a CEE adapter to a standard Schuko 1-phase plug for easy connection to a regular electrical outlet.
BASIC SPECIFICATIONS
Connection: CEE plug 3 phase, CEE to Schuko adapter 1 phase
Rated current: 32 A
Rated power: 22 kW
Rated voltage: AC 380-480 V
Protection:
against overvoltage: 265 V (1-phase voltage)
against undervoltage: 175 V (1-phase voltage)
Overcurrent: 110% of rated current
against leakage: AC/ A+DC 6 mA
against ground fault: yes
anti-lightning: yes
Water resistance: IP67 Type 2 connector / IP54 charger / IP44 industrial
against overheating: yes
Cable harness size: 5× 6 mm 2 + 1× 0.25 mm 2
Cable length: 5 m
Color: black
Compatible car models: Aiways U5, Nissan Ariya
Audi e-tron 50
Audi e-tron 55
Audi e-tron GT
Audi e-tron S 55
Audi e-tron S Sportback 55
Audi e-tron Sportback
Audi e-tron Sportback 55
Audi Q4 e-tron
Audi Q4 Sportback e-tron
BMW i3
BMW i3s
BMW i4, Mercedes EQA
BMW iX3
Citroen e-C4
Citroen e-Space Tourer XS
Citroen e-SpaceTourer M
Citroen e-SpaceTourer XL
CUPRA el-Born
Dacia Spring Electric
DS 3 Crossback E-Tense
Fiat 500e
Fiat 500e Convertible
Fiat 500e Hatchback
Fisker Karma
Ford C-Max Energi
Ford Focus Electric
Ford Mustang Mach-E ER
Ford Mustang Mach-E SR
Honda e
Honda e-Advance
Hyundai i30
Hyundai IONIQ Electric
Hyundai Kona Electric
Chevrolet Spark
Jaguar I-Pace
Kia e-Niro
/> Kia e-Niro, Peugeot Ion
Kia e-Soul
Lightyear One
Mazda MX-30
Mercedes B Class E-Celi
Mercedes-Benz EQC 400 4MATIC
Mercedes EQV 300 Extra-Long
Mercedes EQV 300 Long
Mercedes S500 PHEV
Mercedes Vito E-Cell Van
MG MG5 EV
MG ZS EV
Mini Cooper S
Mitsubishi Outlander Phev
Mitsubishi-I Miev
Opel Ampera-e
Opel Corsa-e
Opel Mokka-e
Opel Zafira-e Life M
Opel Zafira-e Life S
Peugeot e-2008 SUV
Peugeot e-208
Peugeot e-Traveller Long
Peugeot e-Traveller Standard
Polestar 2
Porsche Panamera S PHEV
Porsche Taycan 4S Plus
Porsche Taycan 4S Series 3
Porsche Taycan Cross Turismo
Porsche Taycan Turbo
Porsche Taycan Turbo S
Renault Fluence
Renault Kangoo Maxi ZE 33
Renault Twingo Electric
Renault Zoe ZE50
SEAT Mii Electric
Smart EQ forfour
Smart EQ fortwo cabrio
Smart EQ fortwo coupe
Skoda Enyaq iV
Skoda Enyaq iV 80X
Skoda Enyaq iV RS
Tesla Cybertruck
Tesla Model 3, Renault Zoe ZE40
Tesla Model Opel Zafira-e Life L
Tesla Model Y
Tesla Roadster
Tesla S/X, Chevrolet Volt
Toyota Prius
Vauxhall Ampera
Volkswagen e-Golf
Volkswagen e-Up
Volkswagen e-Up!
Volkswagen ID.
Volkswagen ID.3 1st
Volkswagen ID.3 Pro
Volkswagen ID.3 Pro S
Volkswagen ID.3 Pro Performance
Volkswagen ID.3 Pure
Volkswagen ID.4
Volkswagen ID.4 1st
Volkswagen ID.4 Pro Performance
Volkswagen ID.5
Volvo V60 PHEV
Volvo XC40 P8 AWD
