EATON AC charger for electric vehicles, for households, 3.7-22kW, T2 socket, On-Line

Eaton AC EV charger 3.7-22 kW (T2 socket)

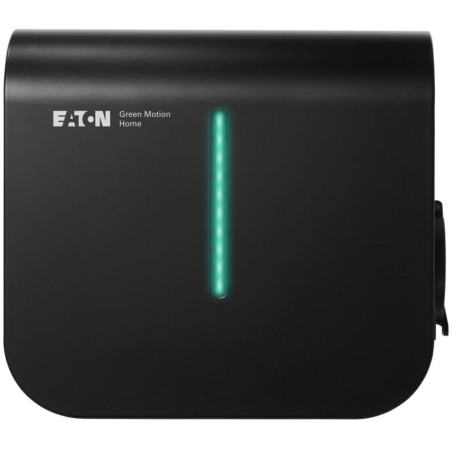

The Eaton Green Motion Home charging station for homes can charge electric vehicles and plug-in hybrid vehicles with up to 22 kW . The electric vehicle charger meets the charging specifications of all types of electric vehicles using charging mode 3. The station is equipped with a number of features, control options via Ethernet and Wi-Fi with OCPP 1.6 support. A special mobile application enables safe charging and user-friendly control and offers a comprehensive management solution with advanced functions such as charging scheduling, access control and energy reading, among others. With functions such as output current limitation and load balancing with support for an external electricity meter, it offers seamless user comfort and prevents possible inconveniences caused by power restrictions in the home. In addition to wall mounting, it offers floor mounting thanks to an optional floor stand. With IP54 and IK08 protection, it is suitable for indoor and outdoor installations.

BASIC SPECIFICATIONS

Power: 3.7 to 22 kW

Input voltage: 3× 400 V (option 1× 230 V)

Input current: up to 32 A

Output: T2 socket

Residual current circuit breaker: no

Protection category: IP54, IK08

Operating temperature: -25 to +45 °C

Dimensions: 291 × 263 × 116 mm

Weight: 3 kg
