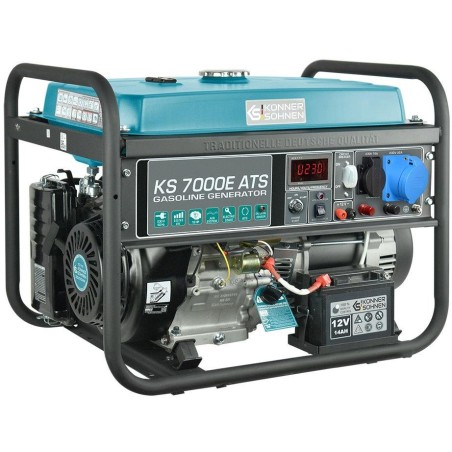

Xtend Solarmi KS 7000E ATS
One of the unique features of the KS 7000E ATS generator set is the built-in ATS (Automatic Transfer Switch). This feature allows the generator set to monitor the mains power supply and automatically switch on in the event of a power failure and then switch off automatically when the power is restored. This feature is indispensable and very useful in buildings with strict temperature or light control and in the absence of supervisory personnel. ATS does not require any sophisticated equipment or installation. The ATS unit is already built into the generator set.
Built-in ATS system
The control panel of the generator with ATS (Automatic Transfer Switch) function is equipped with power terminals, an ATS switch and an ATS operation indicator.
Comfortable ergonomic control panel with electric start
The convenient and ergonomic panel allows easy control of the entire unit and does not require additional skills. The modern intelligent LED display always shows the number of hours worked, frequency and output voltage. The information on the display helps to control the load on the equipment and ensure timely maintenance of the generator, which extends the service life of the operation.
Alternator with 100% copper winding
The generator is equipped with a top-of-the-line synchronous alternator with 100% copper windings that can withstand maximum loads without damage to ensure long-term reliable operation.
Switching contactors
Reliable 100% copper switching contactors have an increased capacity of 40 A, ensuring long-term safe performance of the ATS system.
Simple starting system
The easy-start system allows the engine to start quickly and effortlessly. More powerful models are also equipped with an electric starting system.
Steel tank
The enlarged steel fuel tank extends the generator's operating time without refueling. The fuel level indicator is located on the tank for easy operation.
Vibration reduction dampers
Thanks to rubber feet to reduce vibrations, the working generator will not damage the floor covering and the frame's surface finish will not be scratched.
BASIC SPECIFICATIONS
Output voltage: 230 V
Rated power: 5 kW
Max. power: 5.5 kW
Sockets: 1× 16 A, 1× 32 A
Engine: KS 390 (petrol, single-cylinder, four-stroke, air-cooled), 13 hp/ 9.56 kW
Engine start: manual, electric, automatic
Fuel tank volume: 25 l
Weight: 76.8 kg
Dimensions: 680 × 550 × 545 mm
