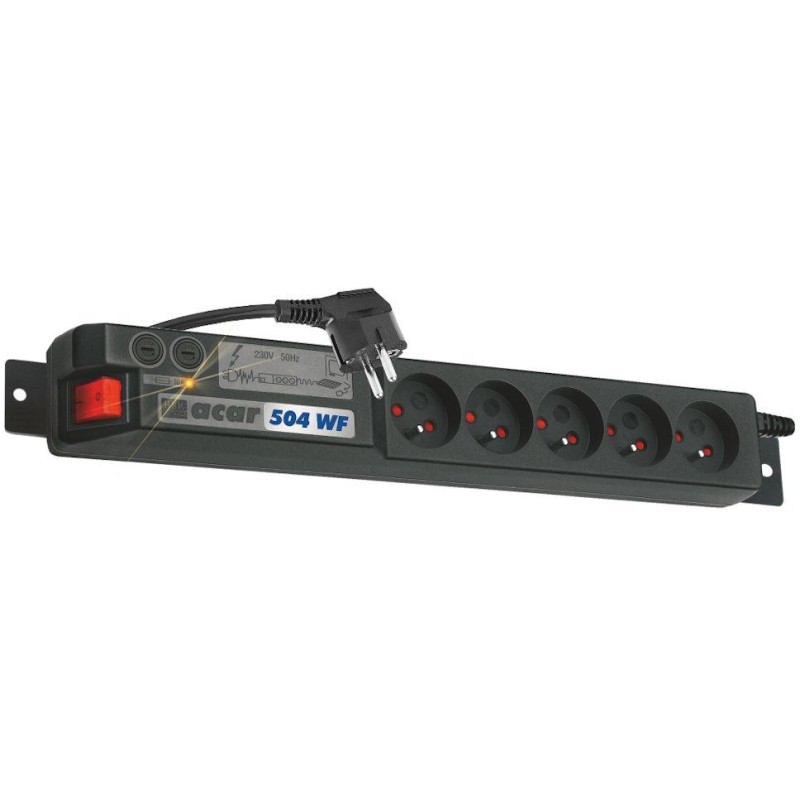

ACAR 19" distribution panel 5x 230V, ČSN, 3m cable, surge protection, interference filter, 2x fuse

Network distributor (distribution panel) with an anti-interference attenuation filter, designed to protect sensitive electronic devices from network disturbances and interference.

AXON-5-230-NO-RACK or Acar 504 WF is an improved version enriched with a highly attenuated interference suppression filter. The panel is equipped with 5 230 V sockets with grounding and 2 fast fuses . The high potential of such an interference suppression filter significantly expands the range of possible applications of the device . The area of application is the protection of high-end home audio and video equipment, sensitive measuring instruments, advanced IT and telecommunications equipment. The backlit switch indicates the presence of voltage in the sockets. The delivery includes mounting brackets that allow permanent installation of the device in any convenient place.

BASIC SPECIFICATIONS

Number of sockets: 5
Rated voltage: 230 V (50 Hz)
Maximum load (P max ): 2300 W
Load current (I max ): 10 A
Cable length: 3 m
Cover: made of self-extinguishing plastic
Dimensions: 385 × 59 × 55 mm
Weight: 0.54 kg
