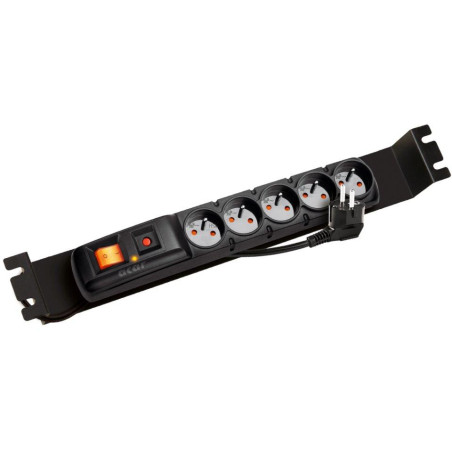

Solarix Acar 19" power panel 1U 5x230V ČSN switch, lightning arrester, black, 3m

Solarix ACAR-F5-FA

The power panel is equipped with a new and very reliable filter circuit that removes electromagnetic interference and perfectly protects all devices connected to it. This model is supplied with removable mounting brackets that allow its installation in a 19" rack or wall-mounted distribution box. The height of the mounting brackets in a 19" rack is 1U and the length of the power cable is 3 m . ACAR-F5-FA is also equipped with a backlit switch and a circuit breaker. Modern design, construction made of high-quality and non-flammable plastic (according to ČSN IEC 60884-1 and ČSN EN 61058-1) and fast varistors, together with a low price, guarantee that this surge protector is the best choice for all possible uses, not only in the field of structured cabling.

Special versions of power supply panels for mounting in a 19" frame protect against overvoltage. The panels are equipped with a filter to protect all components installed in the cabinet. The unit is supplied with mounting plates or a mounting tray that allows the device to be installed as a module in a 19" plane. The panels are offered in variants with 5 or 8 sockets. The length of the power cable for both panels is 3 m. Brackets or a tray for attaching the distribution panel to 19" vertical rails are included in the delivery. Five or eight power sockets rotated by 45° with increased efficiency and a grounding pin. Fast fuses that protect both the phase and neutral supply from overload and local short circuits. The built-in filter dampens harmonic oscillations of radio interference. A varistor with a response time of less than 25 ns allows the absorption of overvoltage pulses up to 140 J. The backlit switch allows the voltage to be disconnected from all ACAR device outlets and at the same time visually signals the presence of voltage in the sockets.

•

• Circuit breaker: 1 automatic circuit breaker with delayed reaction 10 A/ 250 V

• Power switch: backlit power switch

• Leakage current: < 0.5 mA

• Delay time: < 25 ns

• Rated surge voltage: 250 V, 50 Hz

• Protection level Up of the overvoltage system: ≤ 1.3 kV (L/N)

• Rated leakage current IN: 2 kA (L/N) - 8/20 µs

• Maximum leakage current Imax: 6.5 kA (L/N) - 8/20 µs

• Surge protection system: protective pins connected to the protective conductor (2P+Z system)


BASIC SPECIFICATIONS

Number of sockets: 5 sockets with protective pin 10 A/250 V

Rated voltage: 230 V

Frequency: 50 Hz

Rated current (∑ IN): 10 A

Material (socket box): self-extinguishing plastic

Dimensions: 330 x 55 x 54 mm

Weight: 0.65 kg
