| Application | |
| CPU Socket | LGA 1700 |

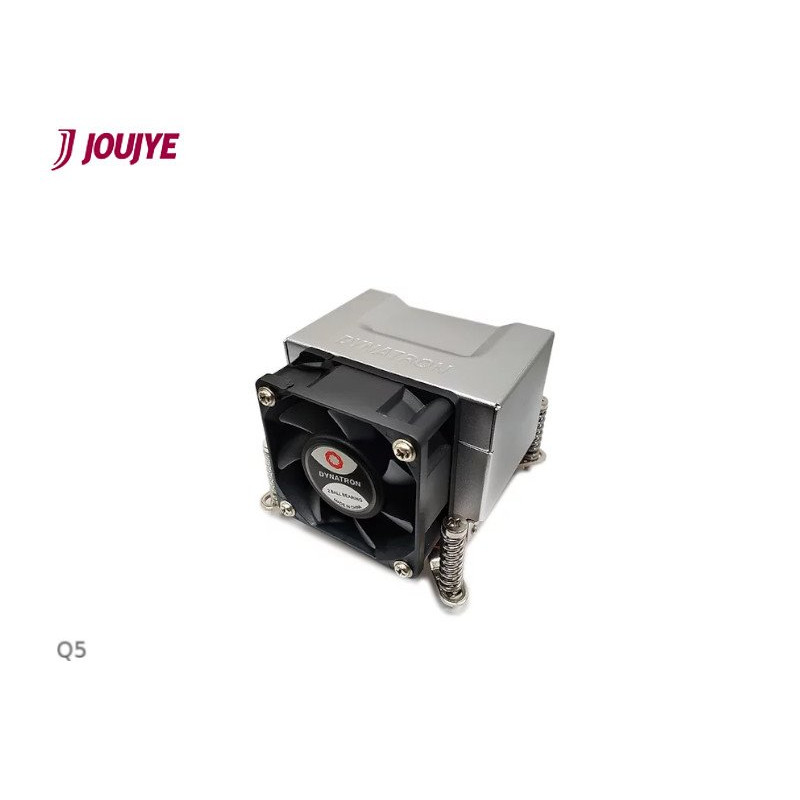

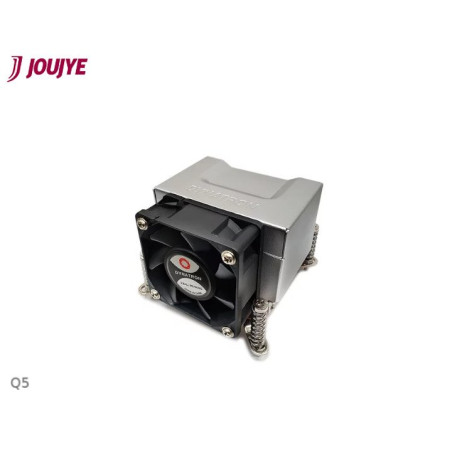

| CPU | Recommend for Intel® Alder Lake S Processor |
| Solution | Active Cooler for 2U Server & up |
| Technical Data | |
| Overall dimension | 90.7 x 85.0 x 65.1 mm |
| Weight | 515.2g |
| Heat Sink | |
| Material | Copper Base & Aluminum Fins with Heat Pipe embedded |
| Fan | |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 0~20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 Min RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12 V |
| Power | At Duty Cycle 0~20%: 1.20W At Duty Cycle 50%: 2.28W At Duty Cycle 100%: 7.2W |
| Air Flow | At Duty Cycle 0~20%: 9.28 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 46.41 CFM |
| Noise Level | At Duty Cycle 0~20%: 18 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 52.94 dBA |
| Static Pressure | At Duty Cycle 0~20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O |
| Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM) |
| Thermal grease | Pre-printed |
