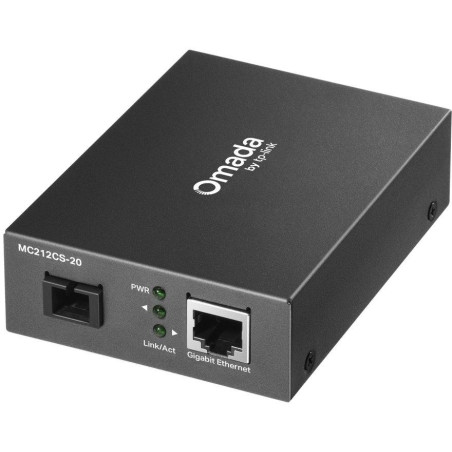

TP-Link MC212CS-20 WDM Media Converter 1x 10/100/1000 Mbps RJ45, 1x 1000Mbps SC port, 20 km

Gigabit media converter with advanced WDM technology for efficient conversion between electrical and optical signals.

MC212CS-20 is a professional network device designed to convert Gigabit Ethernet signals between RJ45 port and optical SC port . It uses modern WDM (Wavelength Division Multiplexing) technology , which enables bidirectional data transmission over a single optical fiber with wavelengths of TX 1310 nm and RX 1550 nm .

The device is ideal for extending networks over long distances of up to 20 km in commercial applications such as security monitoring, wireless networks or connecting remote buildings. Thanks to its plug & play functionality, it requires no configuration.

Advanced network compatibility
The converter supports a wide range of network standards including IEEE 802.3, IEEE 802.3ab for Gigabit Ethernet and IEEE 802.3x for flow control. Auto-negotiation of all parameters ensures seamless integration into existing networks.

Robust operating conditions
The device is designed for reliable operation in a wide temperature range from -5°C to +50°C with an operating humidity of 10-90% non-condensing. Compact dimensions of 94.5 × 73 × 27 mm allow for easy installation.

Package contents
The delivery includes the MC212CS-20 media converter, an external 9V/0.6A power adapter and an installation guide for quick commissioning.

BASIC SPECIFICATIONS

Ports: 1x Gigabit SC/UPC Fiber Port, 1x 10/100/1000 Mbps RJ45 Port

Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

Wavelengths: 1310 nm TX, 1550 nm RX

Range: up to 20 km (single mode fiber)

Power supply: external adapter 9 V/0.6 A

LED indicators: PWR, Link/Actbr />
Operating temperature: -5°C to +50°C

Dimensions: 94.5 × 73 × 27 mm

Weight: not specified
