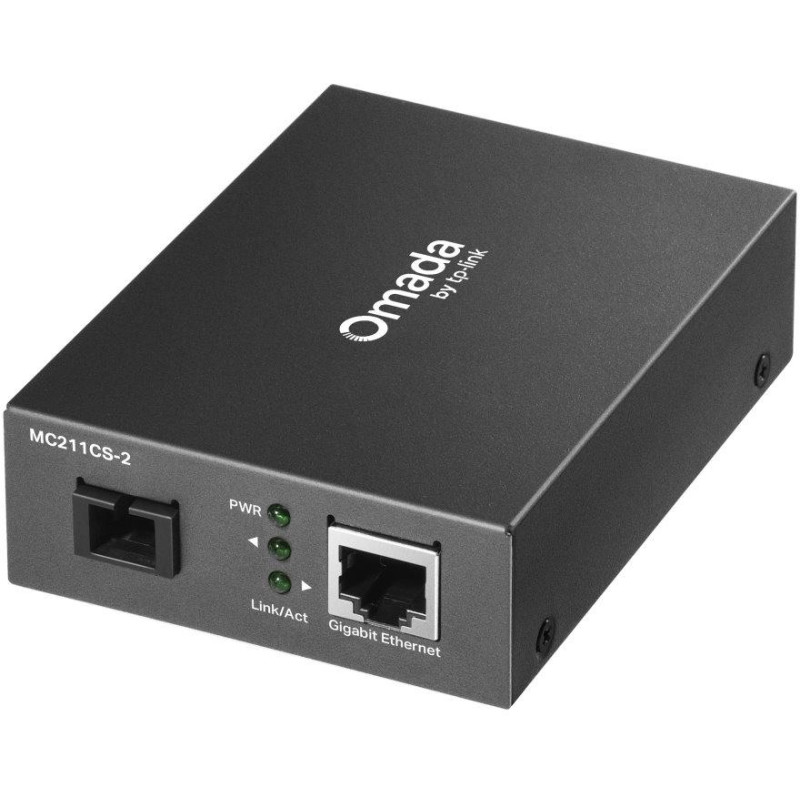

TP-Link MC211CS-2 WDM Media Converter 1x 10/100/1000 Mbps RJ45, 1x 1000Mbps SC port, 2km

Professional gigabit media converter for conversion between electrical and optical signals with support for WDM technology.

MC211CS-2 is an advanced media converter that enables conversion between a gigabit RJ-45 port and a gigabit SC fiber port . The device uses WDM (Wavelength Division Multiplexing) technology , which can transmit and receive data on a single fiber, greatly reducing infrastructure costs.

The converter is ideal for extending network connections up to 2 km over optical fiber. It finds application in commercial applications such as park security monitoring, wireless networks or connecting remote buildings.

Operating conditions and design
The device is designed for reliable operation in the temperature range of -5°C to +50°C with an operating humidity of 10% to 90% RH. The compact dimensions of 94.5 × 73 × 27 mm allow easy installation even in limited space.

Power supply and package contents
The converter is powered by an external 9 V/0.6 A adapter, which is included with the installation manual. Low consumption ensures economical operation.

BASIC SPECIFICATIONS

Interface: 1× gigabit SC/UPC optical port, 1× RJ45 10/100/1000 Mbps

Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

Wavelengths: 1550 nm TX, 1310 nm RX

Range: up to 2 km

Power supply: external adapter 9 V/0.6 A

Operating temperature: -5°C to +50°C

Dimensions: 94.5 × 73 × 27 mm

Indicators: PWR, Link/Act LED
